Circuit Diagram

[A/T]

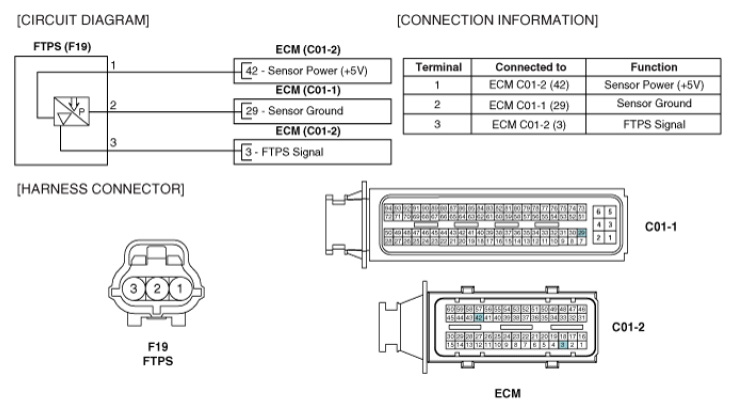

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram - A/T

G06879458

Courtesy of HYUNDAI MOTOR CO.

[M/T]

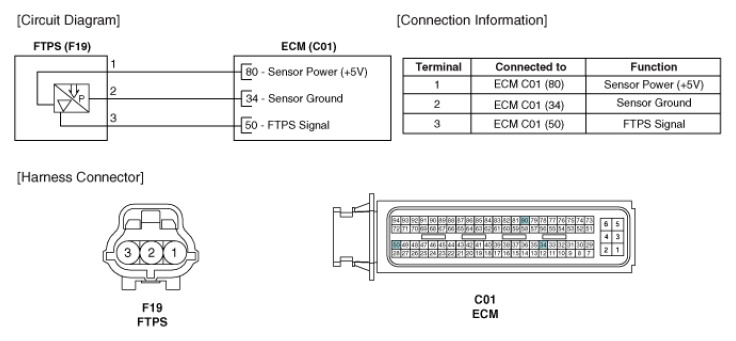

Fig 2: Fuel Tank Pressure Sensor Circuit Diagram - M/T

G06879459

Courtesy of HYUNDAI MOTOR CO.
