Circuit Diagram

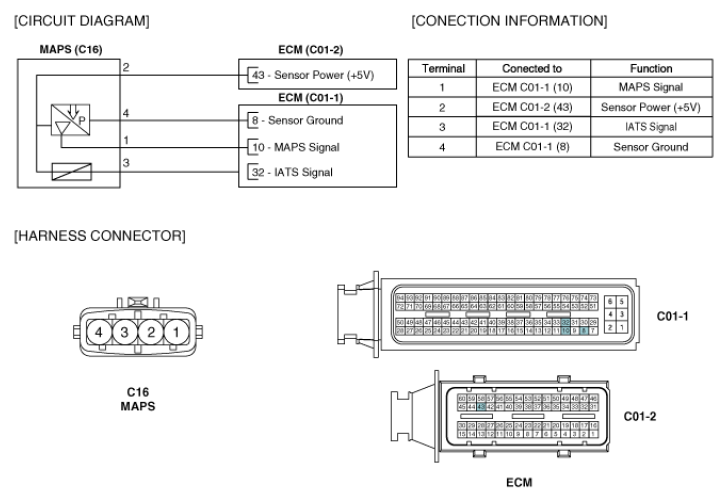

[A/T]

Fig 1: Intake Air Temperature Sensor Circuit Diagram - A/T
G06879433Courtesy of HYUNDAI MOTOR CO.

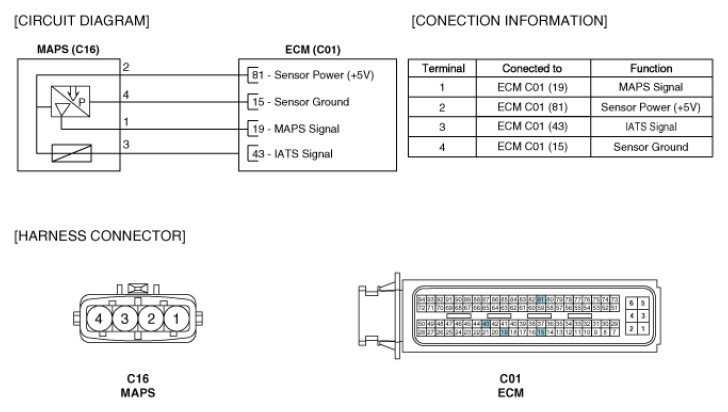

[M/T]

Fig 2: Intake Air Temperature Sensor Circuit Diagram - M/T
G06879434Courtesy of HYUNDAI MOTOR CO.
