Circuit Diagram

[A/T]

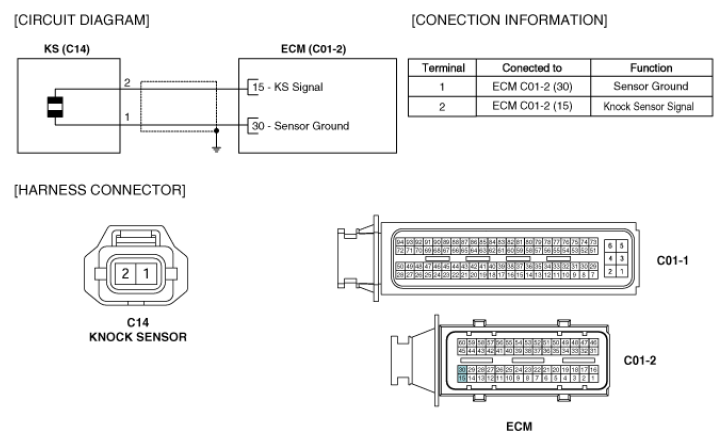

Fig 1: Knock Sensor Circuit Diagram - A/T
G06879450Courtesy of HYUNDAI MOTOR CO.

[M/T]

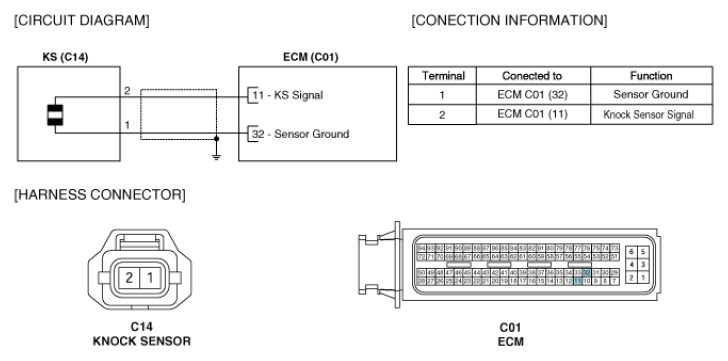

Fig 2: Knock Sensor Circuit Diagram - M/T
G06879451Courtesy of HYUNDAI MOTOR CO.
