Circuit Diagram

[A/T]

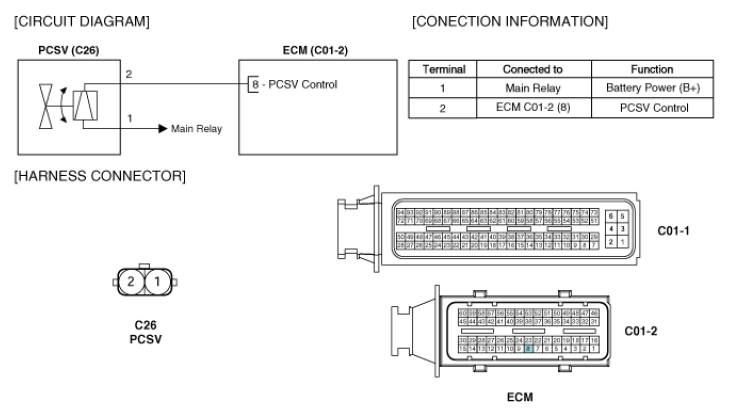

Fig 1: Purge Control Solenoid Valve Circuit Diagram - A/T
G06879467Courtesy of HYUNDAI MOTOR CO.

[M/T]

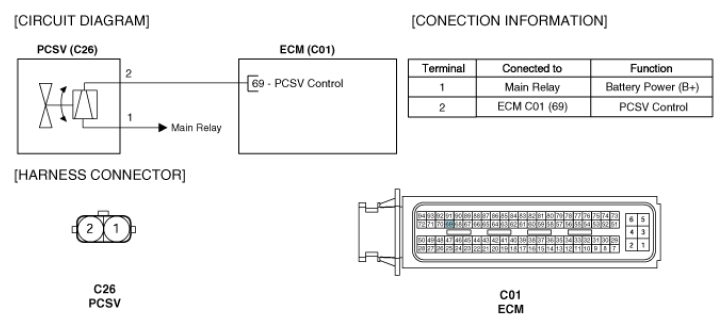

Fig 2: Purge Control Solenoid Valve Circuit Diagram - M/T
G06879468Courtesy of HYUNDAI MOTOR CO.
