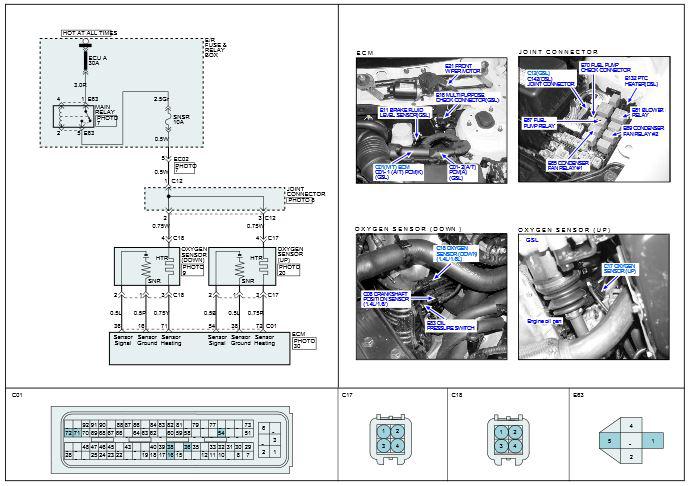

Home › Hyundai › 2011 › Accent GL › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 2) › DTC P0134: O2 Sensor Circuit No Activity Detected (Sensor1) › General Information › Schematic Diagram
