Repair procedures: Inspection

Fig 1: Identifying Ignition Switch And Key Warning Switch Connector Terminals
G06882722Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

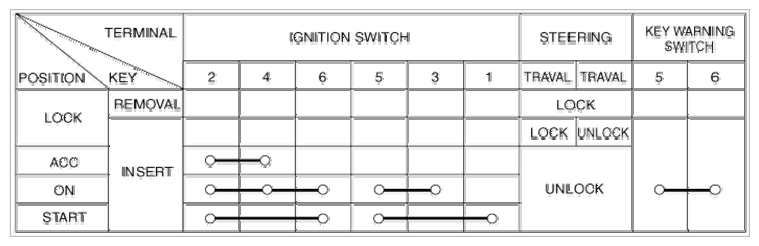

    Fig 2: Ignition Switch And Key Warning Switch Continuity Chart
    G06882723Courtesy of HYUNDAI MOTOR CO.
