Circuit Diagram

[A/T]

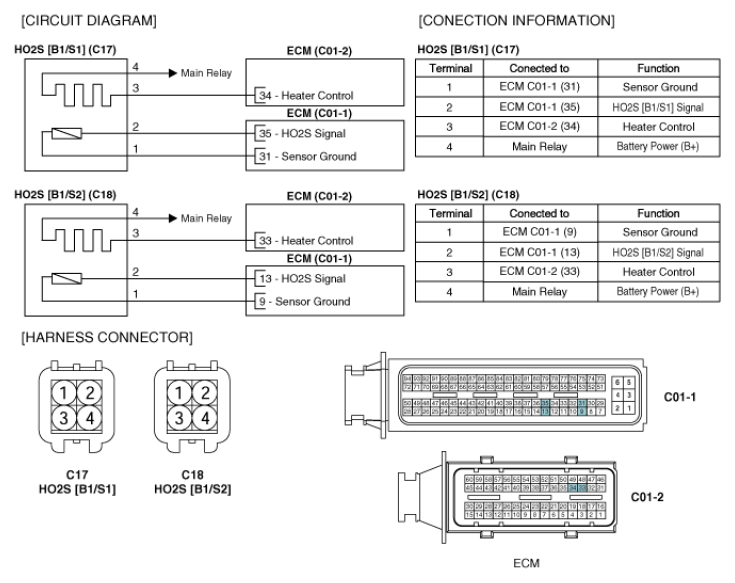

Fig 1: Heated Oxygen Sensor Circuit Diagram - A/T
G06879454Courtesy of HYUNDAI MOTOR CO.

[M/T]

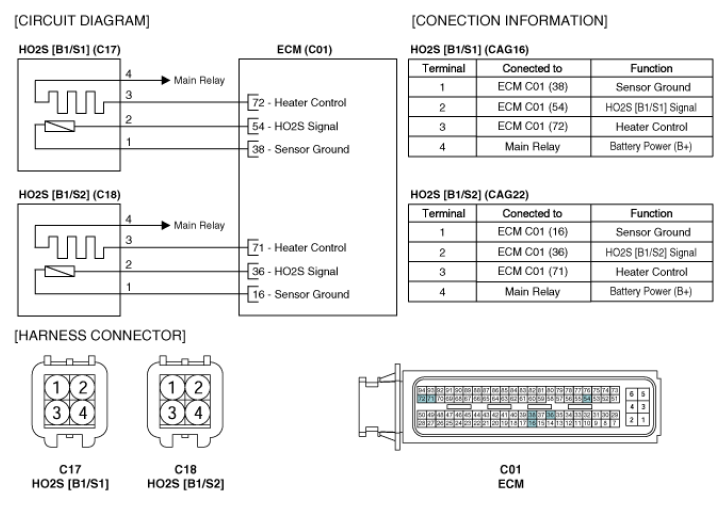

Fig 2: Heated Oxygen Sensor Circuit Diagram - M/T
G06879455Courtesy of HYUNDAI MOTOR CO.
