Standard Hydraulic Pressure Test

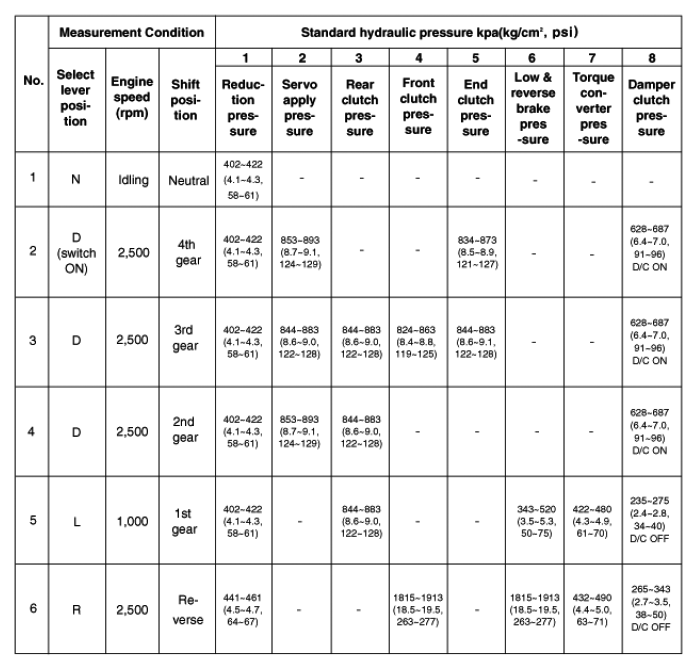

Fig 1: Standard Hydraulic Pressure Test Reference Chart

Courtesy of HYUNDAI MOTOR CO.

NOTE:

• "-" is 0.2 (0.3) kg/cm² or less and "()" is the reverse.
• SW-ON : Turn the overdrive control switch ON.
• SW-OFF : Turn the overdrive control switch OFF.
• The hydraulic pressure may be more than standard value at the ambient temperature.
