Home › Hyundai › 2011 › Accent GS, Automatic › Repair and Diagnosis › Engine Mechanical › Starter › Starting System › Starter › Components and Components Location › Components

Components and Components Location: Components

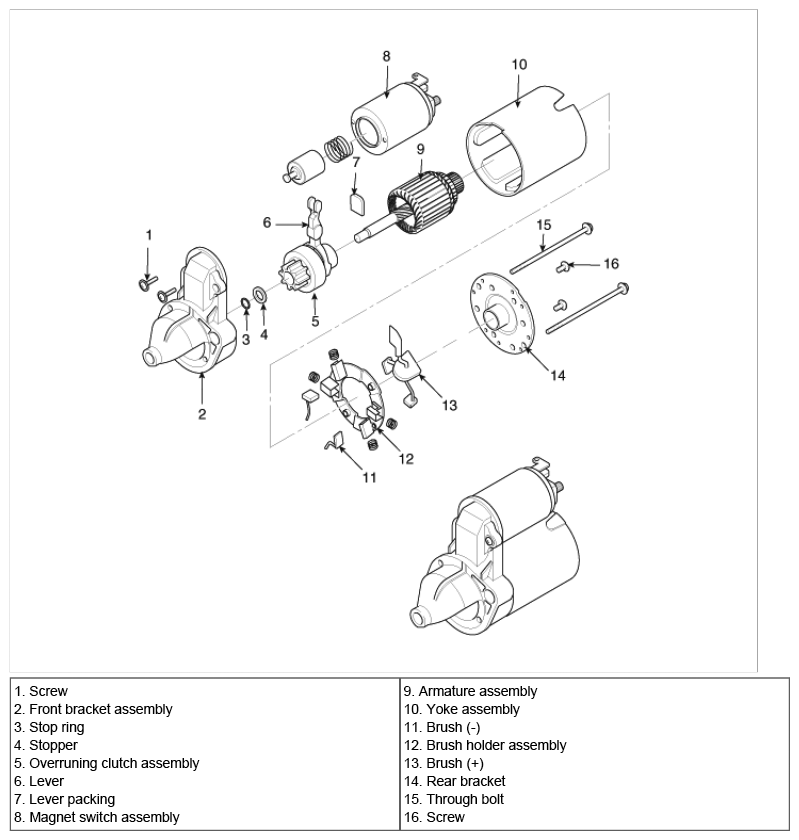

Fig 1: Identifying Starter Components
G06879330Courtesy of HYUNDAI MOTOR CO.
