Hyundai
›
2011
›
Accent SE, Standard
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Manual Transaxle Control System
›
Manual Transaxle Shift Control
›
Components and Components Location (M5CF1)
›
Components (1)
Components (1)

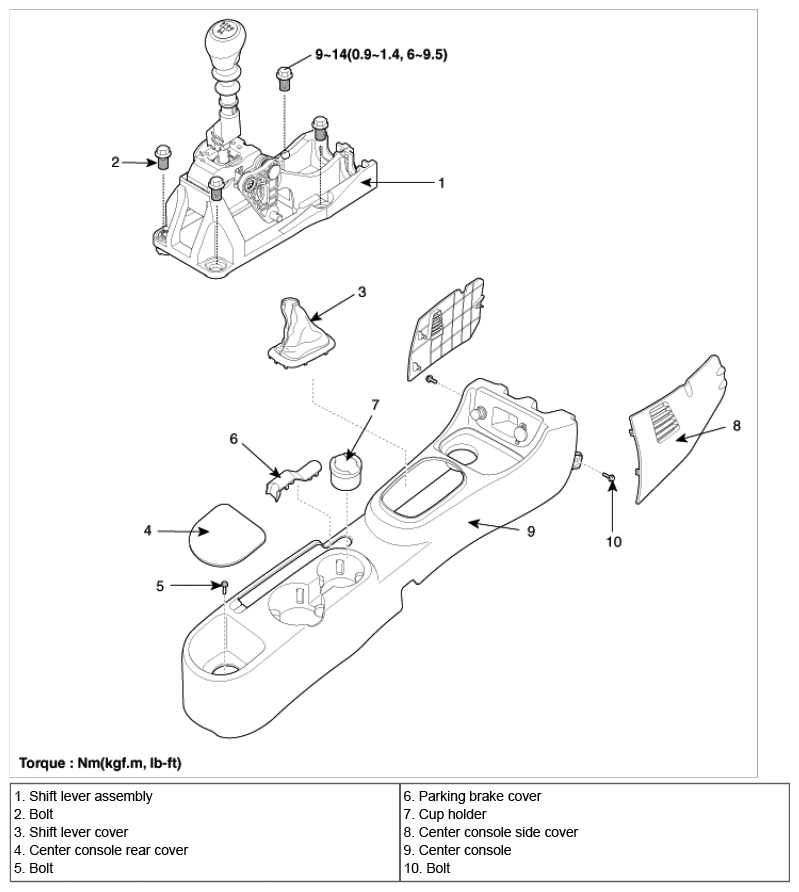

Fig 1: Manual Transaxle Shift Control System Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
