Variant Code

  1. Check for improper installation of EMS/TCU/ESC.
  2. Connect scantool to Data Link Connector (DLC).
  3. Ignition "ON".
  4. Perform variant code. (Fig 1).
  5. Disconnect scantool.
  6. Ignition "OFF" and then ignition "ON". Go to "COMPONENT INSPECTION " Procedure.

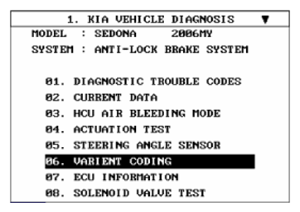

    Fig 1: Scantool Display - Variant Code
    G06805939Courtesy of HYUNDAI MOTOR CO.
