Components and Components Location: Components

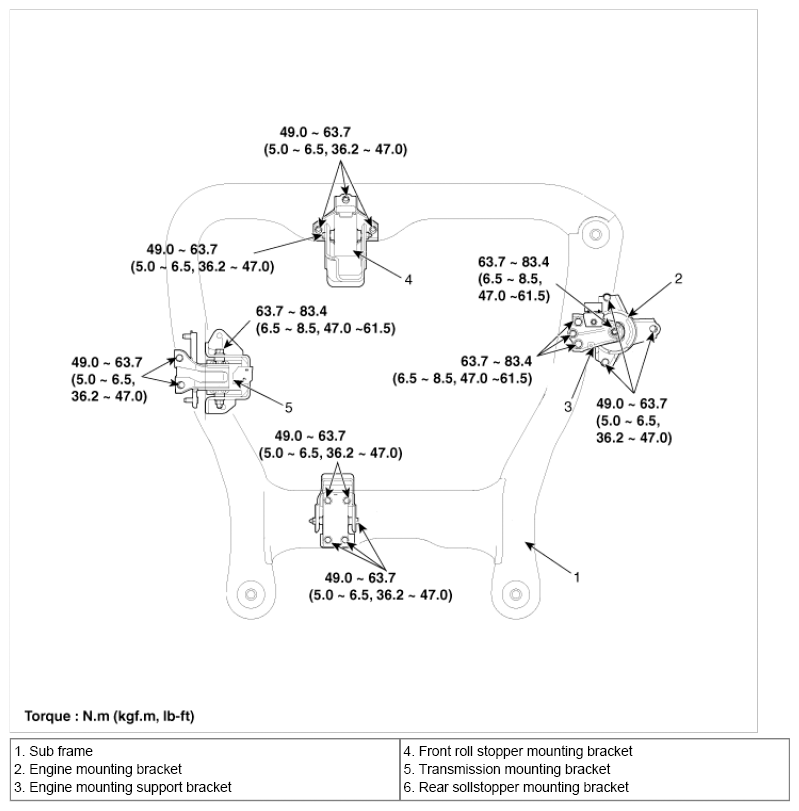

Fig 1: Engine Mounting Components Location
G07249577Courtesy of HYUNDAI MOTOR CO.
