Azera GLS
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
BCM (Body Control Module)
›
Control Module (BCM)
›
Schematic Diagrams
›
Communication System
Communication System

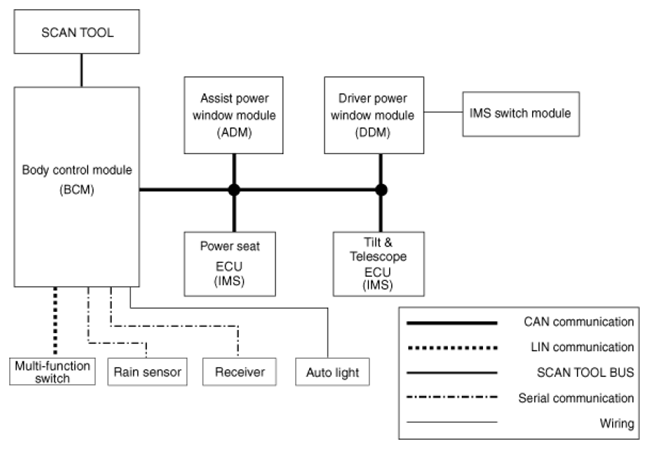

Fig 1: Body Control Module (BCM) Communication System Diagram
