Home › Hyundai › 2011 › Azera GLS › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Audio System › Multimedia › Components and Components Location › Components

Components and Components Location: Components

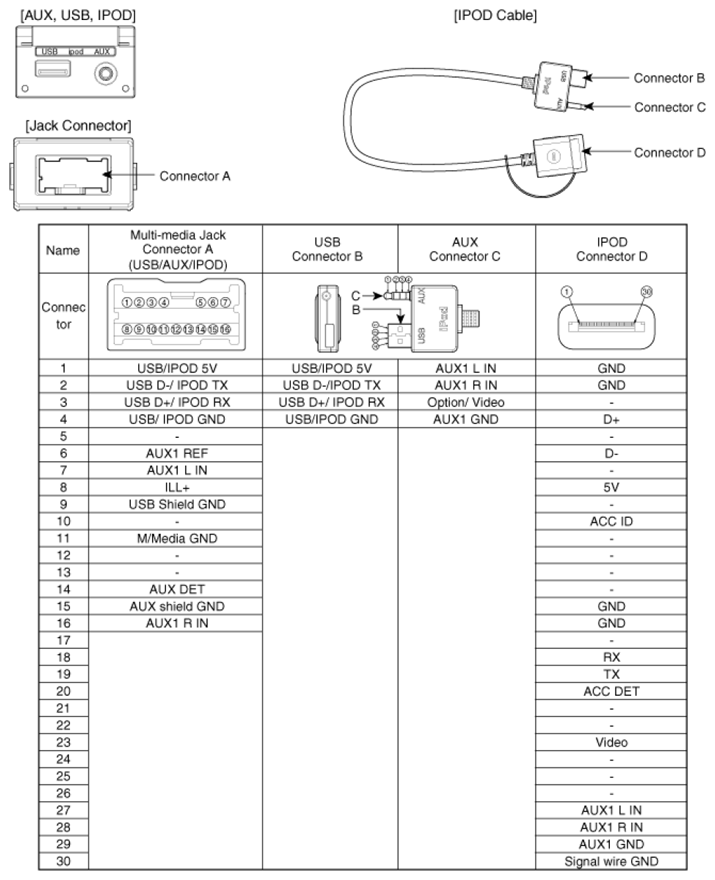

Fig 1: Identifying Multimedia Jack Connectors
G07250042Courtesy of HYUNDAI MOTOR CO.
