Repair Procedures: Inspection

Multifunction switch operates head lamps and wiper by communicating with BCM through LIN communication.
Check BCM input/output value of each position of multifunction switch when you inspect the module whether faulty or not.
Select model and BCM menu.

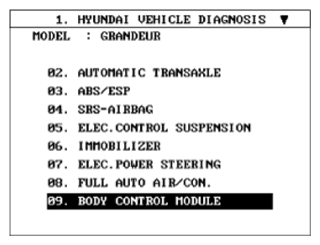

Fig 1: Display Hyundai Vehicle Diagnosis Screen - Select Body Control Module
Courtesy of HYUNDAI MOTOR CO.

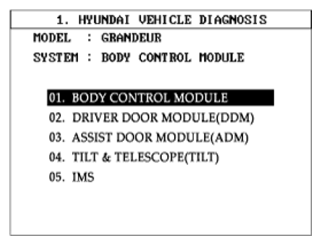

Fig 2: Display Hyundai Vehicle Diagnosis Screen - Body Control Module
Courtesy of HYUNDAI MOTOR CO.

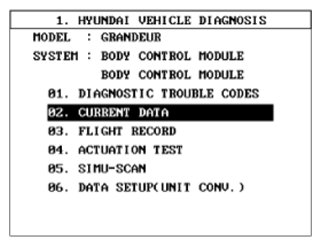

Select "Current data" and wiper. Check auto light & wiper value.

Fig 3: Display Hyundai Vehicle Diagnosis Screen - Current Data
Courtesy of HYUNDAI MOTOR CO.
Check input/output value of auto light.

Fig 4: Display Hyundai Vehicle Diagnosis Screen - Auto Light
Courtesy of HYUNDAI MOTOR CO.
