Components and Components Location: Components

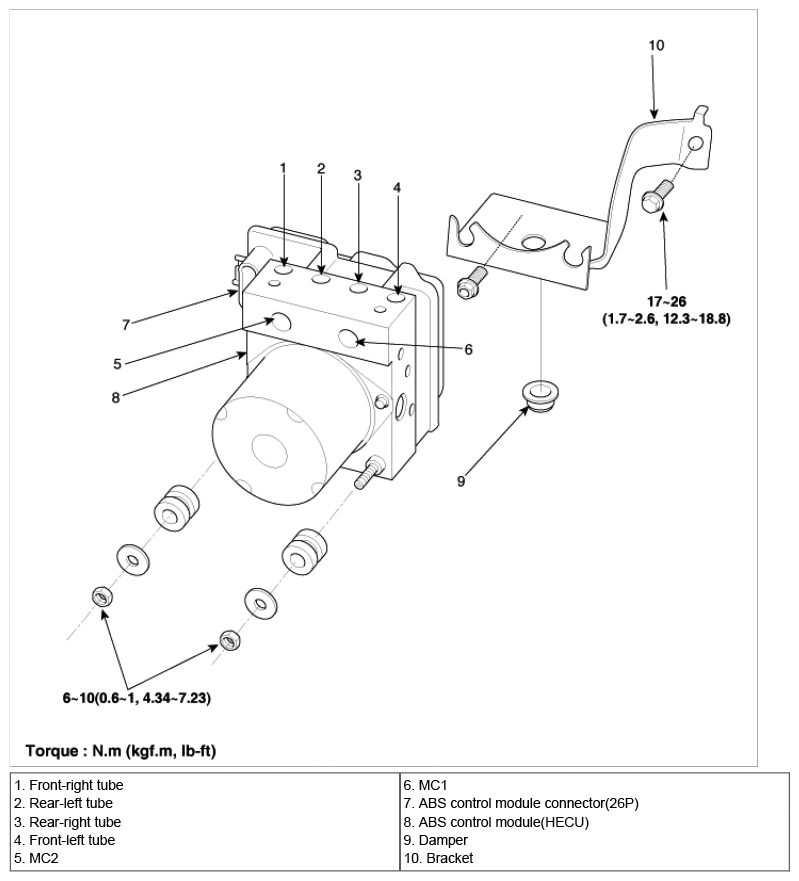

Fig 1: ABS Control Unit Components With Torque Specification
G06802038Courtesy of HYUNDAI MOTOR CO.
