Components and Components Location: Components

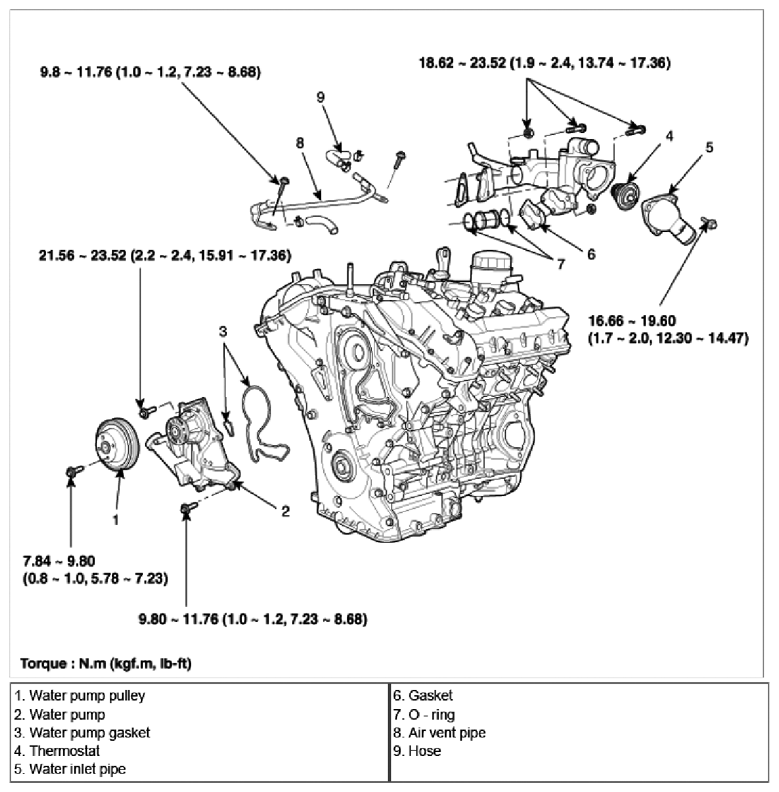

Fig 1: Water Pump Replacement Components With Torque Specifications
G06804849Courtesy of HYUNDAI MOTOR CO.
