Components And Components Location
Components And Components Location

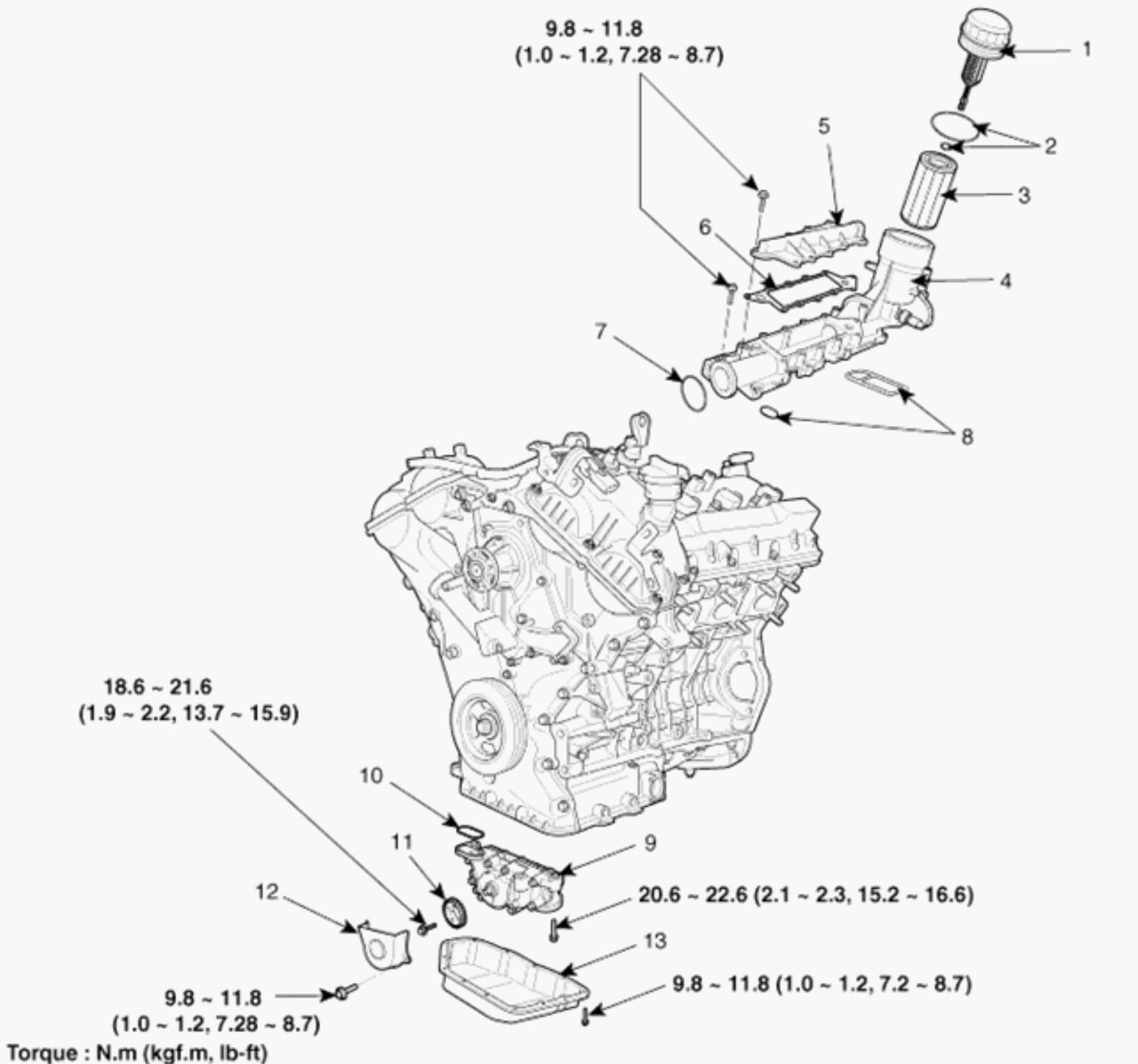

Fig 1: Replacement Components And Locations With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
