Repair Procedures: Installation: Notes

NOTE:

Thoroughly clean all parts to be assembled.
Always use a new head and manifold gasket.
The cylinder head gasket is a metal gasket. Take care not to bend it.
Rotate the crankshaft, set the No. 1 piston at TDC.

Install the cylinder head.
1. The sealant locations on cylinder head and cylinder block must be free of engine oil and ETC.
2. Apply sealant on cylinder block top face before assembling cylinder head gaskets.
  The part must be assembled within 5 minutes after sealant was applied.

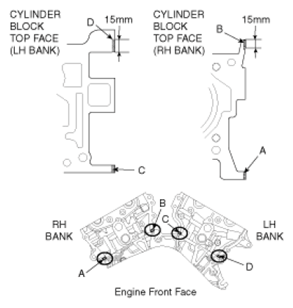

  Fig 1: Applying Sealant On Cylinder Block Top Face Before Assembling Cylinder Head Gaskets
  Courtesy of HYUNDAI MOTOR CO.

  NOTE: Refer to below illustration to apply the sealant.

  Bead width: 2.0~3.0 mm

  Sealant locations: 1.0~1.5mm from block surface

  Recommended sealant: Liquid sealant TB1217H

  Fig 2: Identifying Bead Width
  Courtesy of HYUNDAI MOTOR CO.
3. Apply sealant on cylinder head gaskets after assembling cylinder head gaskets on cylinder block.
  The part must be assembled within 5 minutes after sealant was applied.

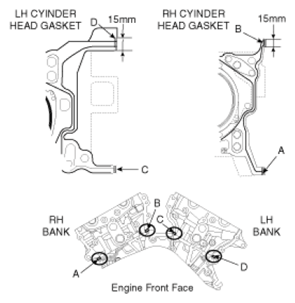

  Fig 3: Applying Sealant On Cylinder Head Gaskets After Assembling Cylinder Head Gaskets On Cylinder Block
  Courtesy of HYUNDAI MOTOR CO.

  NOTE: Be careful of the installation direction.

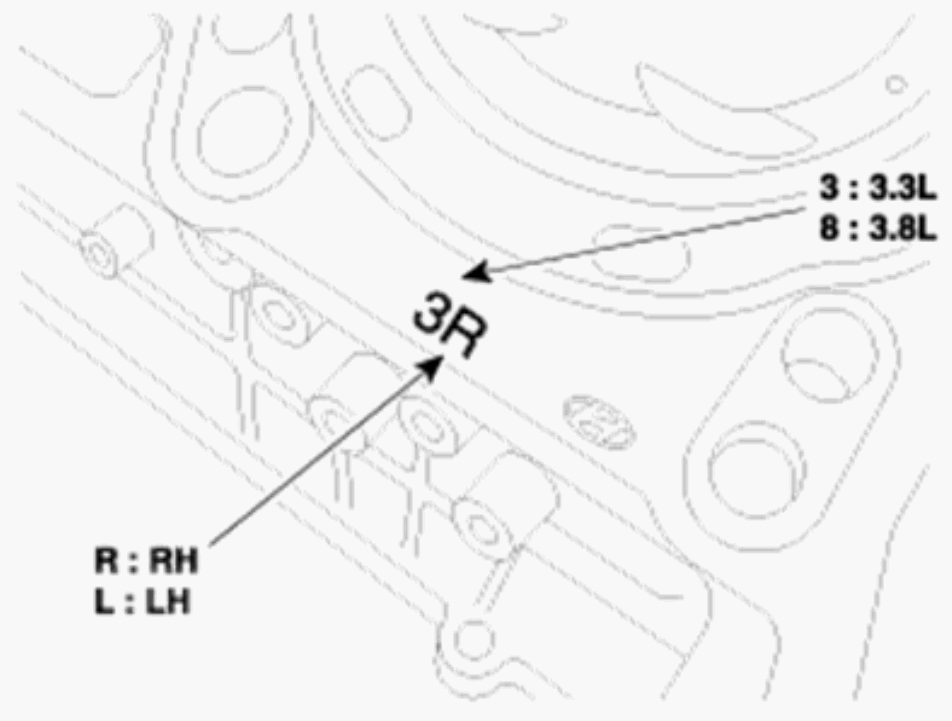

  Fig 4: Identifying Installation Direction
  Courtesy of HYUNDAI MOTOR CO.
4. Install the cylinder head.
NOTE: Remove the extruded sealant after assembling cylinder heads.

Fig 5: Installing Cylinder Head
Courtesy of HYUNDAI MOTOR CO.
Place the cylinder head carefully in order not to damage the gasket with the bottom part of the end.
Install cylinder head bolts.
1. Do not apply engine oil on the threads and under the heads of the cylinder head bolts.
2. Using SST(09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.
Tightening torque

Head bolt : 37.3~41.2Nm (3.8~4.2kgf.m, 27.5~30.4lb-ft) + 118~122° + 88~92°

Bolt (A) : 18.62 ~ 23.52Nm(1.9 ~ 2.4kgf.m, 13.74 ~ 17.36lb-ft)

NOTE: Always use new cylinder head bolts.

Fig 6: Identifying Cylinder Head Bolts Tightening Sequence
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Locating Cylinder Head Bolt
Courtesy of HYUNDAI MOTOR CO.

Fig 8: Tightening Torque Cylinder Head Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the CVVT and camshaft sprocket.
Tightening torque

64.7 ~ 76.4Nm(6.6 ~ 7.8 kgf.m, 47.7 ~ 56.4lb-ft)

Fig 9: Identifying CVVT And Camshaft Sprocket
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- Install camshaft-inlet to dowel pin of CVVT assembly.
  At this time, do not install to oil hole of camshaft-inlet.
- Hold the hexagonal head wrench portion of the camshaft with a vise, and install the bolt and CVVT assembly.
- Do not rotate CVVT assembly when camshaft is installed to dowel pin of CVVT assembly.
Install camshafts(A).
NOTE:
- Apply a light coat of engine oil on camshaft journals.
- Assemble the key groove of camshaft rear side to the same level of head top surface.
- Be careful the right, left bank, intake, exhaust side before assembling.

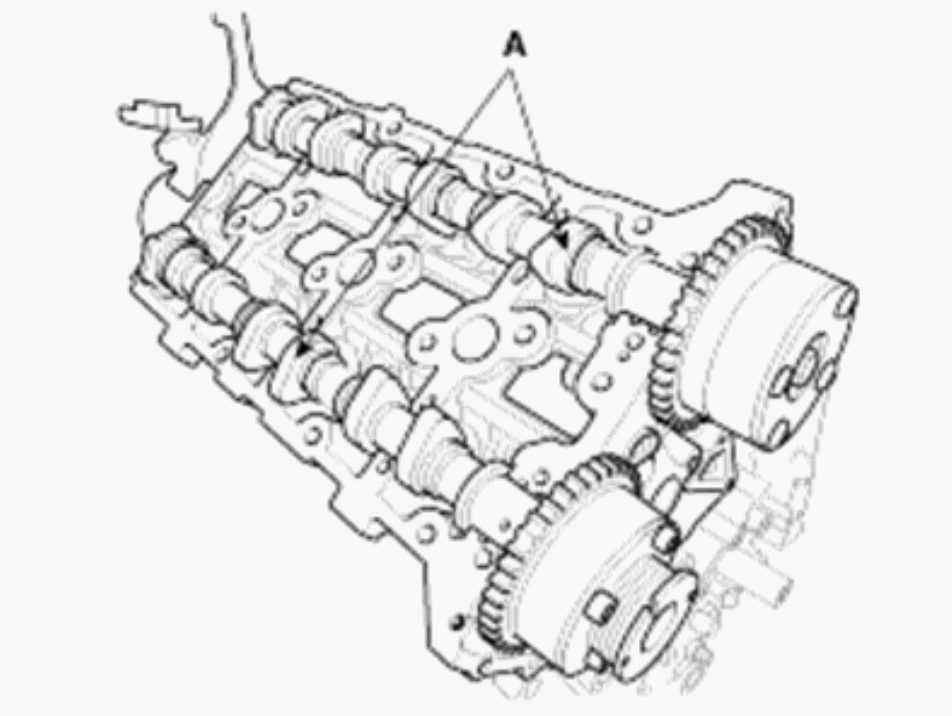

Fig 10: Locating LH Camshaft Assemblies
Courtesy of HYUNDAI MOTOR CO.

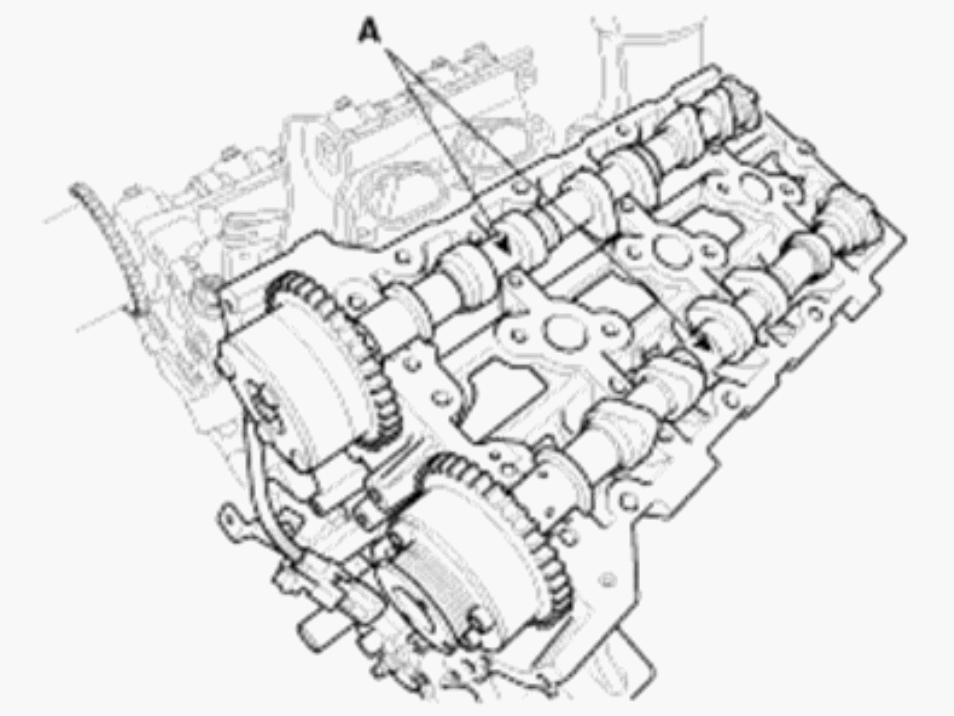

Fig 11: Locating RH Camshaft Assemblies
Courtesy of HYUNDAI MOTOR CO.
