Components and Components Location: Components

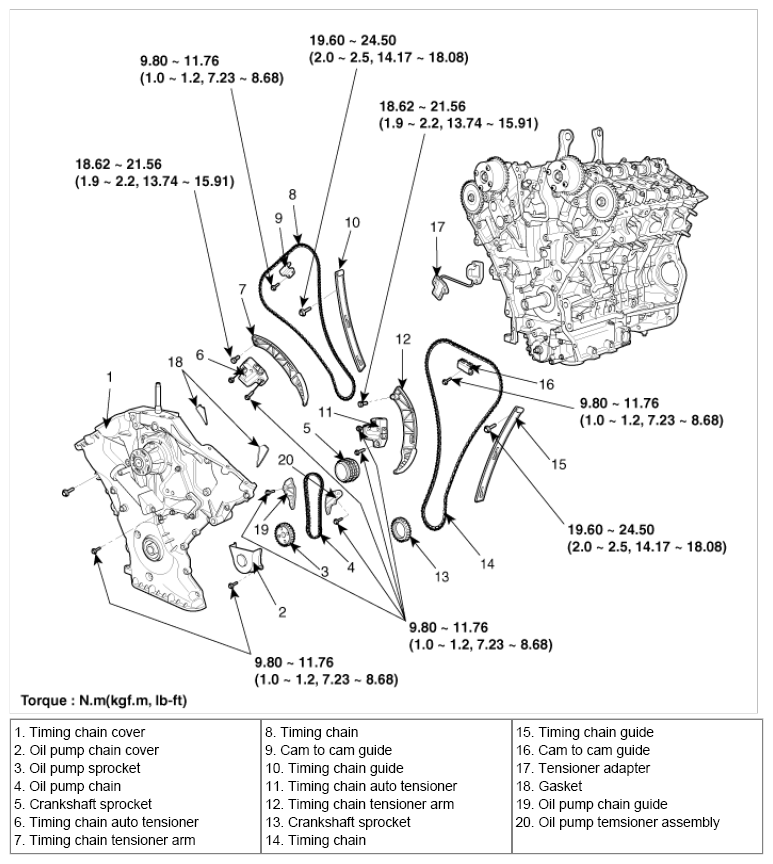

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Timing Chain Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
