Hyundai
›
2011
›
Azera GLS
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System Components
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagram
›
Circuit Diagram
Circuit Diagram

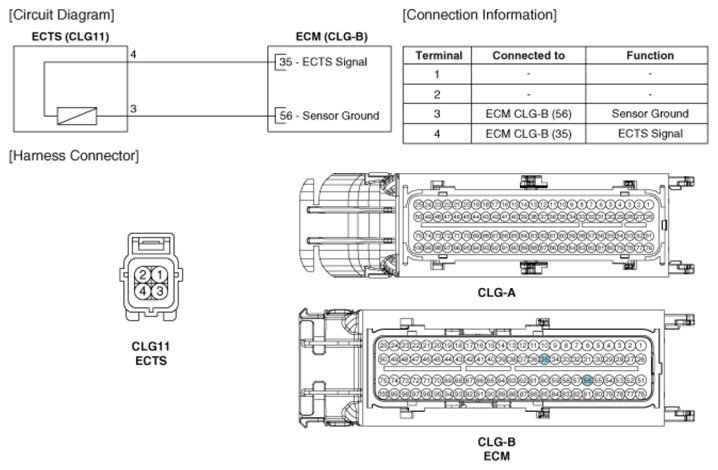

Fig 1: Identifying Engine Coolant Temperature Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
