Signal Waveform & Data

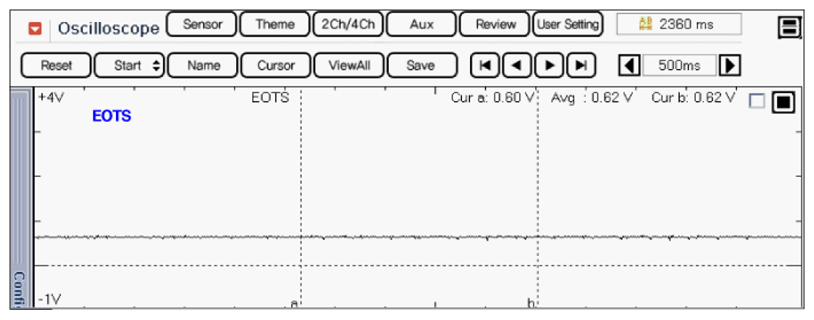

Fig 1: Normal Waveform Of EOTS At 88.5°C. (191°F)
G07251501Courtesy of HYUNDAI MOTOR CO.

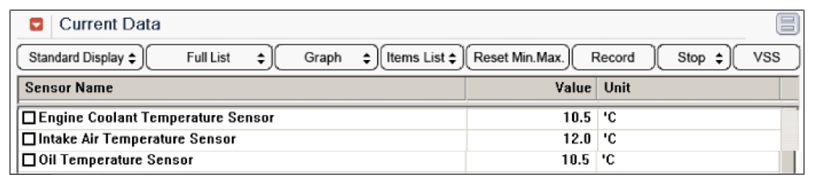

Fig 2: Normal Data Of IATS & ECTS & EOTS (51°F) At IG ON
G07251502Courtesy of HYUNDAI MOTOR CO.

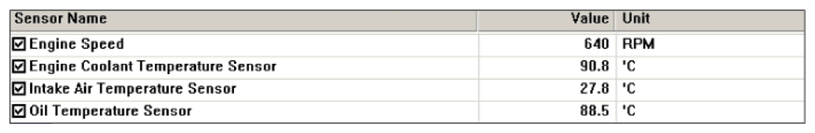

Fig 3: Normal Data Of IATS & ECTS & EOTS (191°F) After Warming Up
G07251503Courtesy of HYUNDAI MOTOR CO.
