DTC P0222: Throttle Position Sensor 2 Signal Circuit Low Input
›
General Information
›
Signal Waveform & Data
Signal Waveform & Data

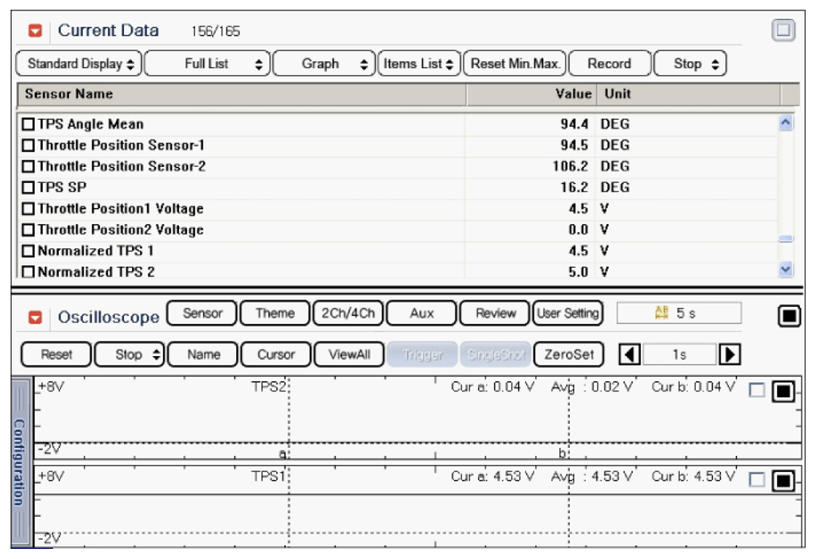

Fig 1: Normal Data Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
Courtesy of HYUNDAI MOTOR CO.

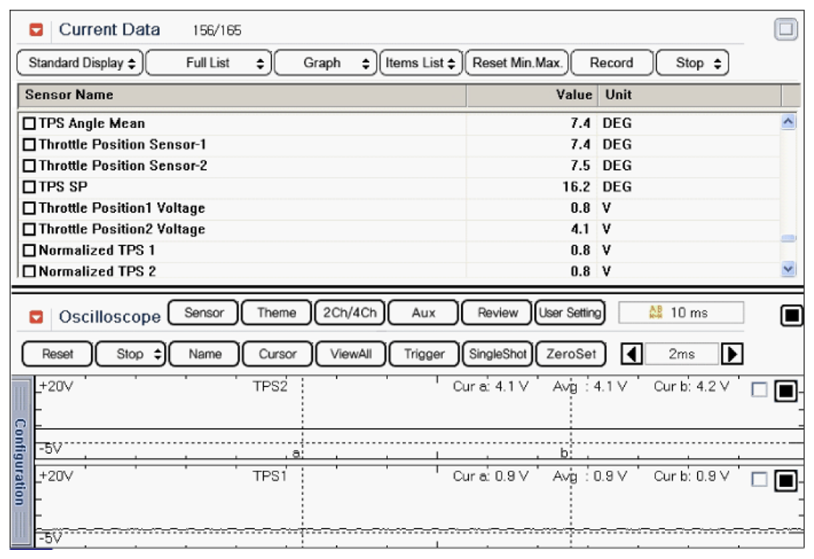

Fig 2: Normal Data Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition
Courtesy of HYUNDAI MOTOR CO.

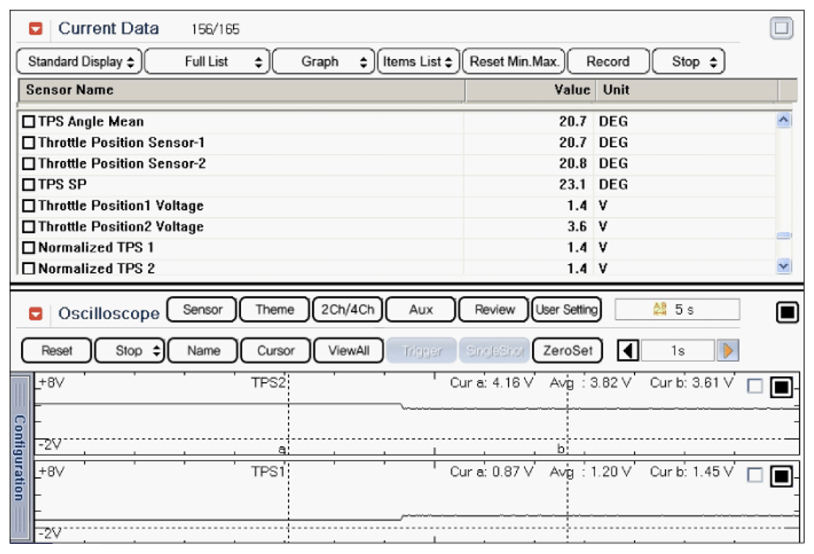

Fig 3: Normal Data Of TPS1 & TPS2 Under Open Condition
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
