Monitor Scantool Data

Connect scantool to Data Link Connector(DLC).
IG "ON".
Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
Read "DTC Status" parameter.

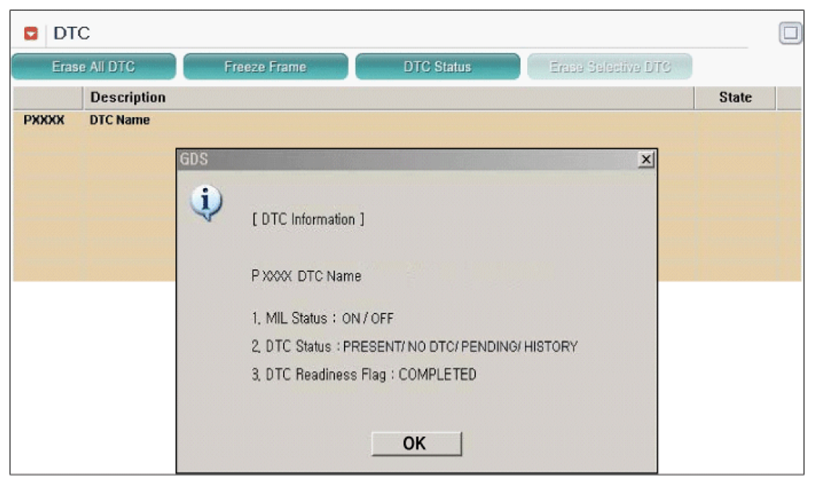

Fig 1: Display DTC Status Parameter
Courtesy of HYUNDAI MOTOR CO.
Is parameter displayed "Present fault"?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Fault is intermittent caused by ECM memory was not cleared after repair. Erase DTC and drive the vehicle to satisfy the enable condition then, go to "SYSTEM INSPECTION " procedure.
