Power Circuit Inspection

IG "OFF" and disconnect the P/S pressure sensor connector.
IG "ON"
Measure the voltage between power terminal of P/S pressure sensor harness connector and chassis ground.
Specification: Approx. 5V

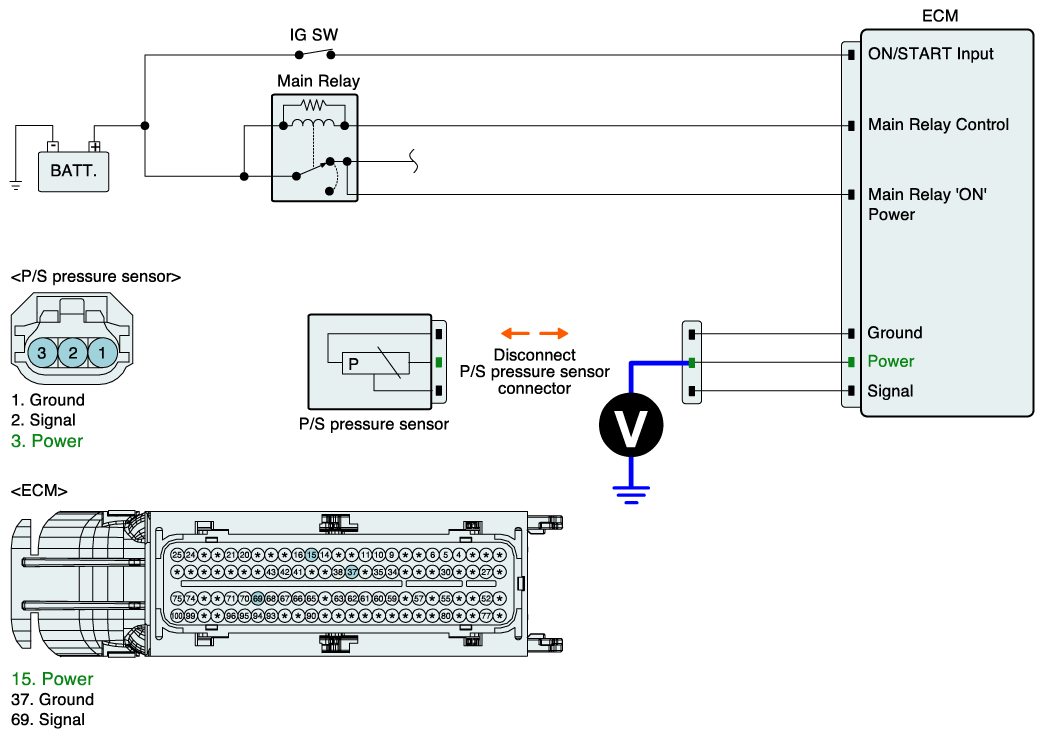

Fig 1: Measuring Voltage Between Power Terminal Of P/S Pressure Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is the measured voltage within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair open or short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
