Monitor Scantool Data
- Connect scantool to Data Link Connector(DLC).
- IG "ON".

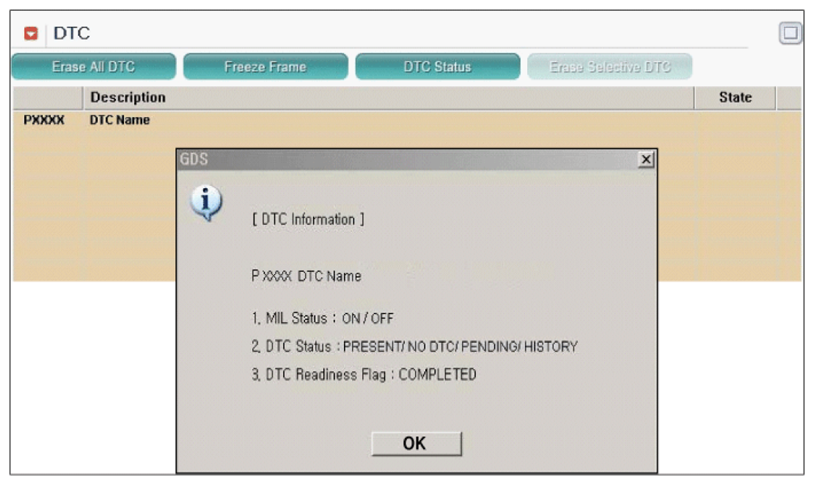

- Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
- Read "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure. (If different DTC showed up together, another DTC is repaired first.)
NO
- Fault is intermittent caused by ECM memory was not cleared after repair.
Go to "VERIFICATION OF VEHICLE REPAIR INSPECTION " procedure.
