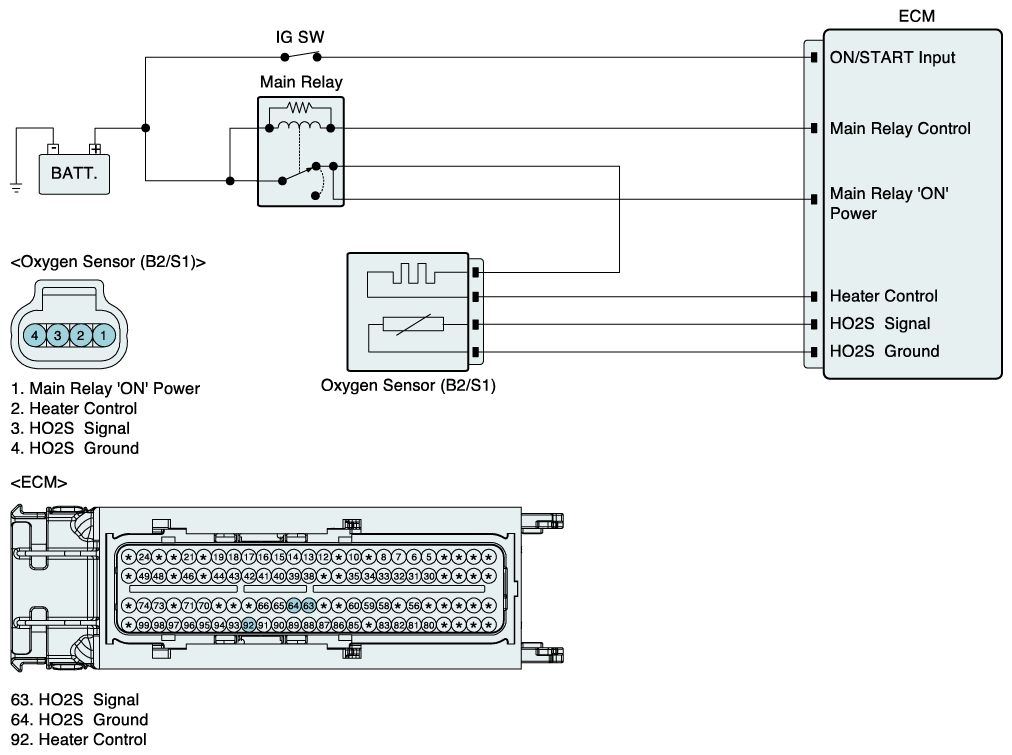

Home › Hyundai › 2011 › Azera GLS › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (3 Of 3) › DTC P2197: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1) › General Information › Diagnostic Circuit Diagram
