Repair procedures: Replacement
WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

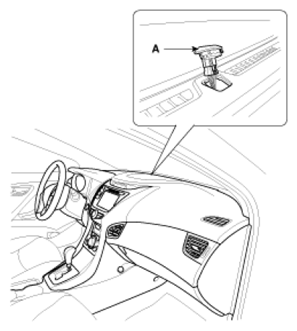

- With the (-) driver, remove the photo sensor (A) from the center of defrost nozzle.
Courtesy of HYUNDAI MOTOR CO.
- Install in the reverse order of removal.
