Repair Procedures: Replacement

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side cover (A).

Fig 1: Identifying Side Cover
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting nut and clip remove the extension cover (A).

Fig 2: Identifying Extension Cover
Courtesy of HYUNDAI MOTOR CO.

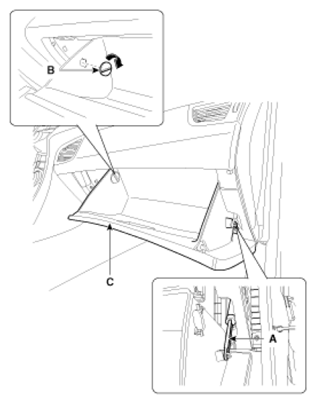

Disconnect the guide (B), from the glove box (C) and then remove the glove box left (A).

Fig 3: Identifying Glove Box Left
Courtesy of HYUNDAI MOTOR CO.

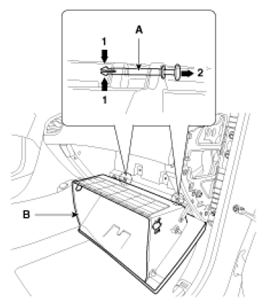

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Identifying Pin
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screw, and then remove the crash pad panel (A).

Fig 5: Identifying Crash Pad Panel
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting bolts and screws and then remove the glove box housing (A).

Fig 6: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Remove the shower duct (A).

Fig 7: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR CO.

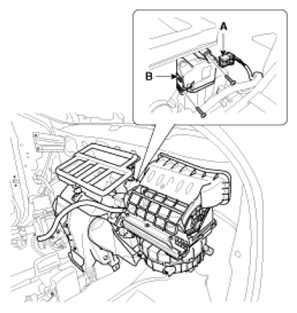

Disconnect the auto defogging actuator connector (A).
Loosen the mounting screw and then remove the auto defogging actuator (B).

Fig 8: Identifying Auto Defogging Actuator Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse order of removal.
