Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not disassemble the BJ assembly.
  • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
  • The boot band should be replaced with a new one.
  1. Remove the circlip (B) from the driveshaft spline (A).
    Fig 1: Identifying Driveshaft Spline
    G07264381Courtesy of HYUNDAI MOTOR CO.
  2. Remove both boot bands from the transaxle side joint(TJ) case.
    Fig 2: Removing Boot Bands
    G07264382Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Removing Boot Bands
    G07264383Courtesy of HYUNDAI MOTOR CO.
  3. Pull out the boot from transaxle side joint case (B).
  4. While dividing joint(TJ) boot (A) of the transaxle side, wipe the grease in TJ case (B) and collect them respectively.
    Fig 4: Identifying Dividing Joint (TJ) Boot
    G07264384Courtesy of HYUNDAI MOTOR CO.

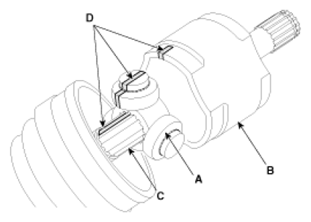

    CAUTION: Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
    Fig 5: Identifying Spider Roller Assembly
    G07264385Courtesy of HYUNDAI MOTOR CO.
  5. Remove the snap ring (A) and spider roller assembly (B) from the shaft.
    Fig 6: Identifying Snap Ring
    G07264386Courtesy of HYUNDAI MOTOR CO.
  6. Remove the spider assembly (B) from the driveshaft (A).
    Fig 7: Identifying Driveshaft
    G07264387Courtesy of HYUNDAI MOTOR CO.
  7. Clean the spider assembly.
  8. Remove the boot (A) of the transaxle side joint(TJ).
    CAUTION: For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
    Fig 8: Identifying Boot
    G07264388Courtesy of HYUNDAI MOTOR CO.
  9. Using a plier or flat-tipped (-) screwdriver, remove the both side of clamp (B) of the dynamic damper (A).
    Fig 9: Removing Dynamic Damper Clamp (1 Of 2)
    G07264389Courtesy of HYUNDAI MOTOR CO.
    Fig 10: Removing Dynamic Damper Clamp (2 Of 2)
    G07264390Courtesy of HYUNDAI MOTOR CO.
  10. Fix the driveshaft (A) with a vice (B) as illustrated.
    Fig 11: Fixing Driveshaft With Vice
    G07264391Courtesy of HYUNDAI MOTOR CO.
  11. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.
  12. Separate the dynamic damper (A) from the shaft (B) carefully.
    Fig 12: Identifying Dynamic Damper
    G07264392Courtesy of HYUNDAI MOTOR CO.
