Components and Components Location: Components

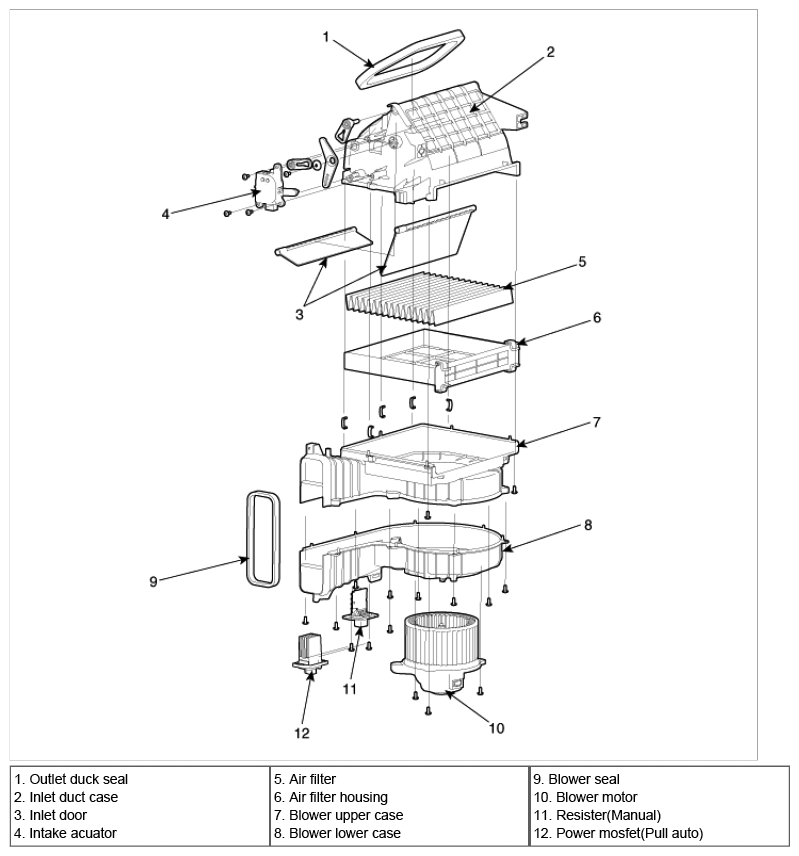

Fig 1: Exploded View Of Blower Unit
G06802592Courtesy of HYUNDAI MOTOR CO.
