Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the airbag module mounting bolts(2EA).

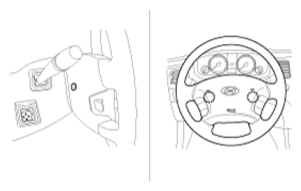

    Fig 1: Identifying Airbag Module Mounting Bolts (2EA) And Steering Wheel
    G06801927Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the horn connector(A).
    Fig 2: Identifying Horn Connector And Driver Airbag Module Connector
    G06801928Courtesy of HYUNDAI MOTOR CO.
  4. Release the connector locking pin, then disconnect the driver airbag module connector(B).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering wheel column cover (Refer to STEERING COLUMN & SHAFT
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
Fig 3: Identifying Clock Spring And Horn Connector
G06801929Courtesy of HYUNDAI MOTOR CO.
