Components and Components Location: Components

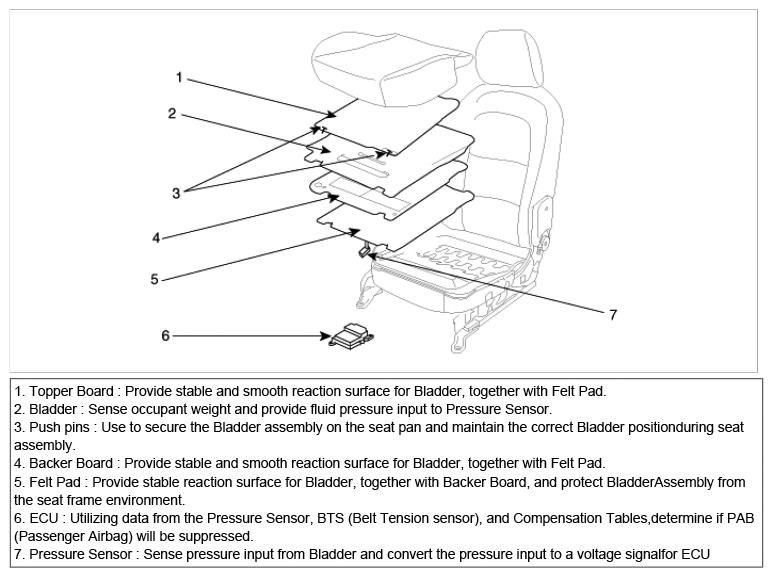

Fig 1: Identifying Seat Components
G06801922Courtesy of HYUNDAI MOTOR CO.
