Components and Components Location: Components

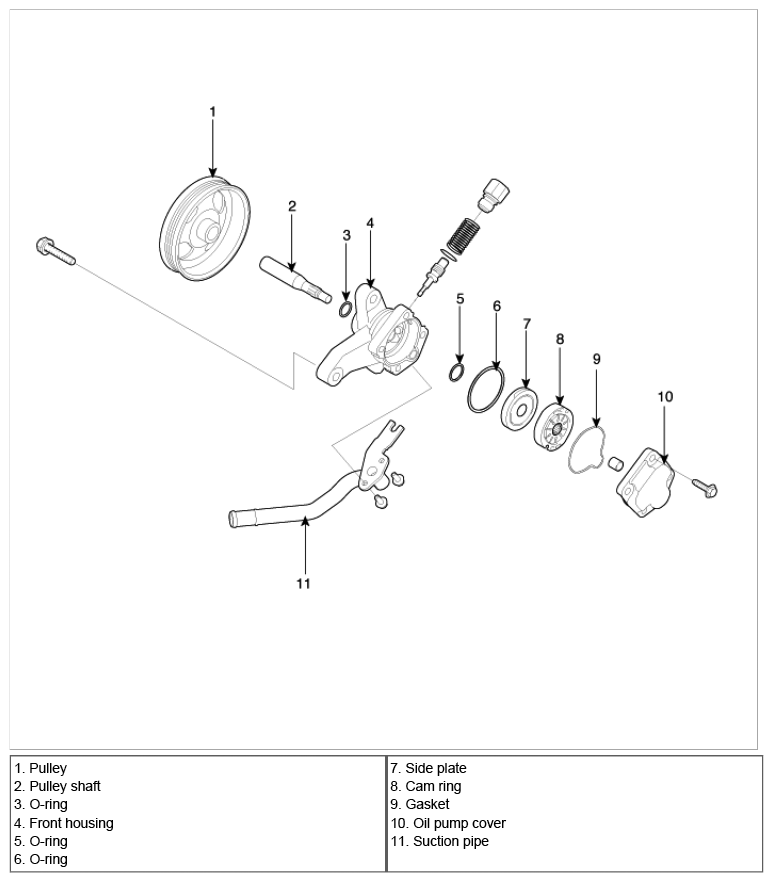

Fig 1: Exploded View Of Power Steering Oil Pump
G06801849Courtesy of HYUNDAI MOTOR CO.
