Home › Hyundai › 2011 › Azera GLS › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System › Shift Lever › Components and Components Location › Components

Components and Components Location: Components

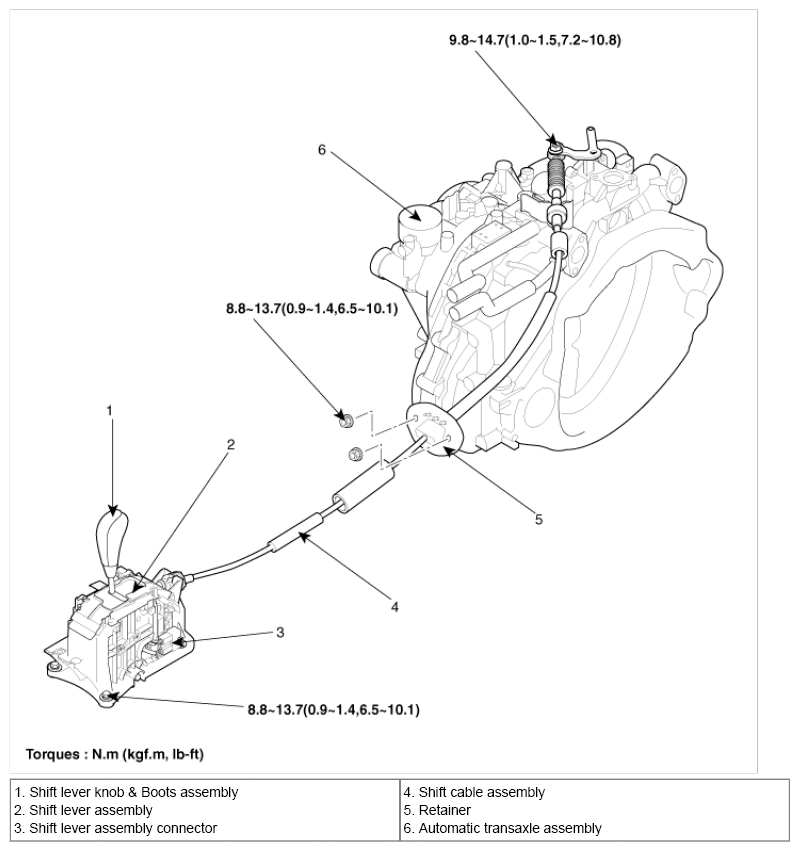

Fig 1: Exploded View Of Shift Lever
G07249766Courtesy of HYUNDAI MOTOR CO.
