Home › Hyundai › 2011 › Azera GLS › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System › Automatic transaxle › Components and Components Location › Components (1)

Components (1)

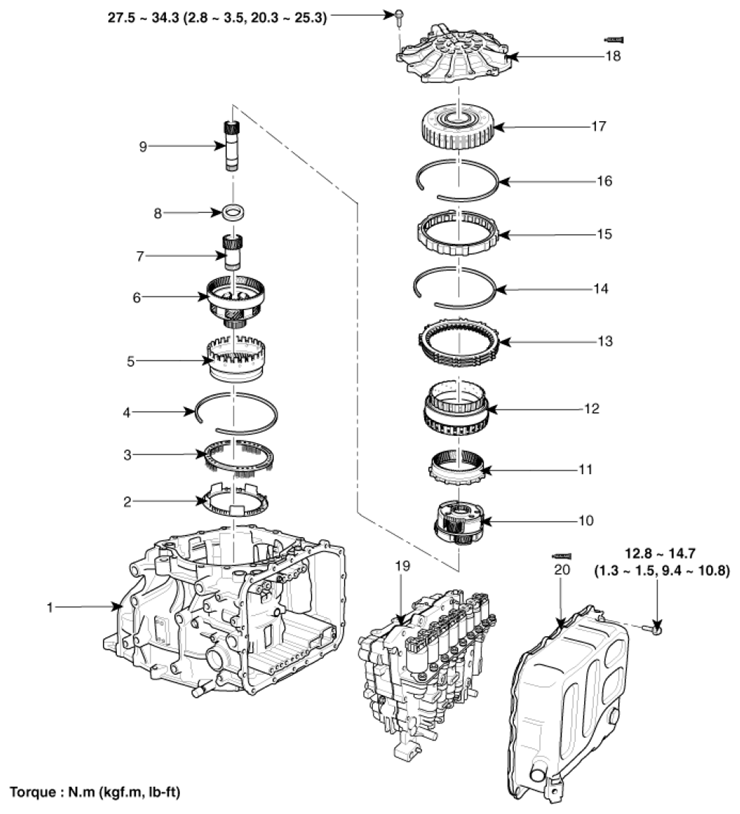

Fig 1: Exploded View Of Automatic Transaxle (1 Of 2) With Torque Specifications
G07249738Courtesy of HYUNDAI MOTOR CO.
