Components Location
Components Location

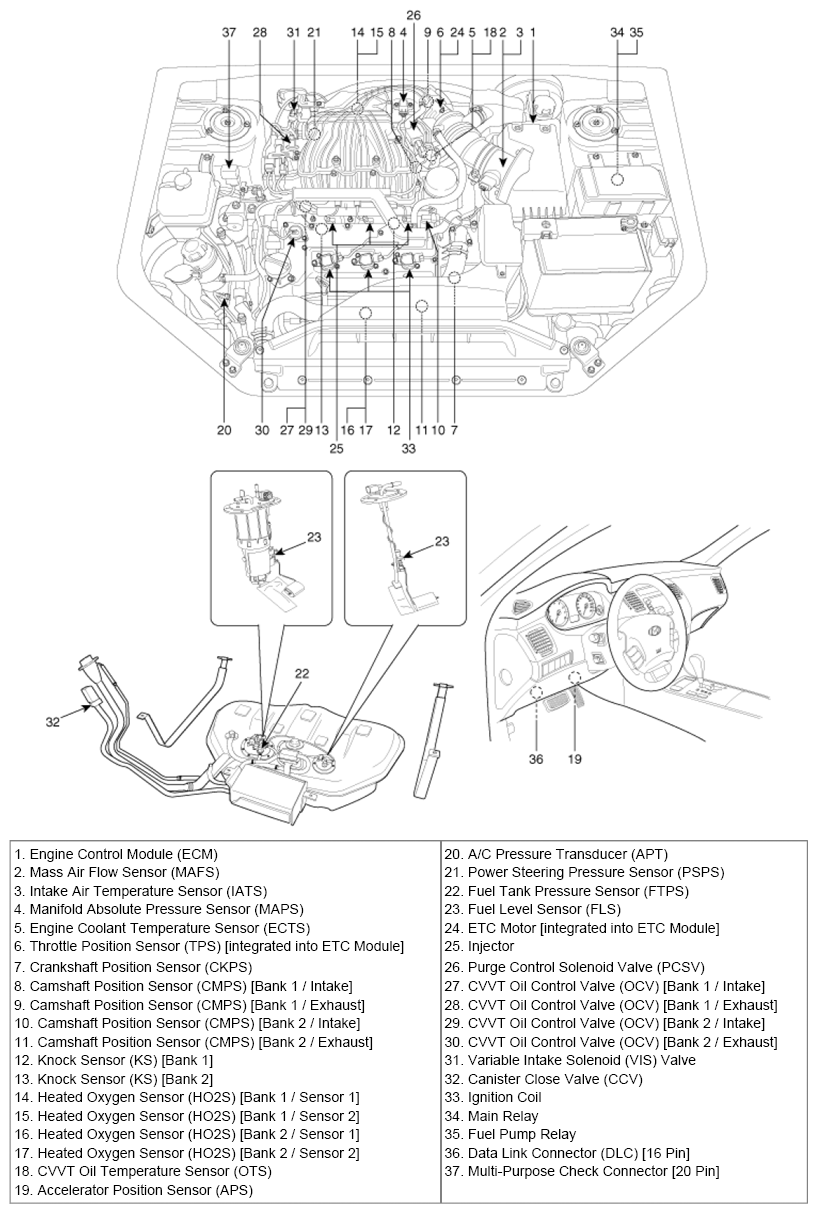

Fig 1: Engine Control System Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

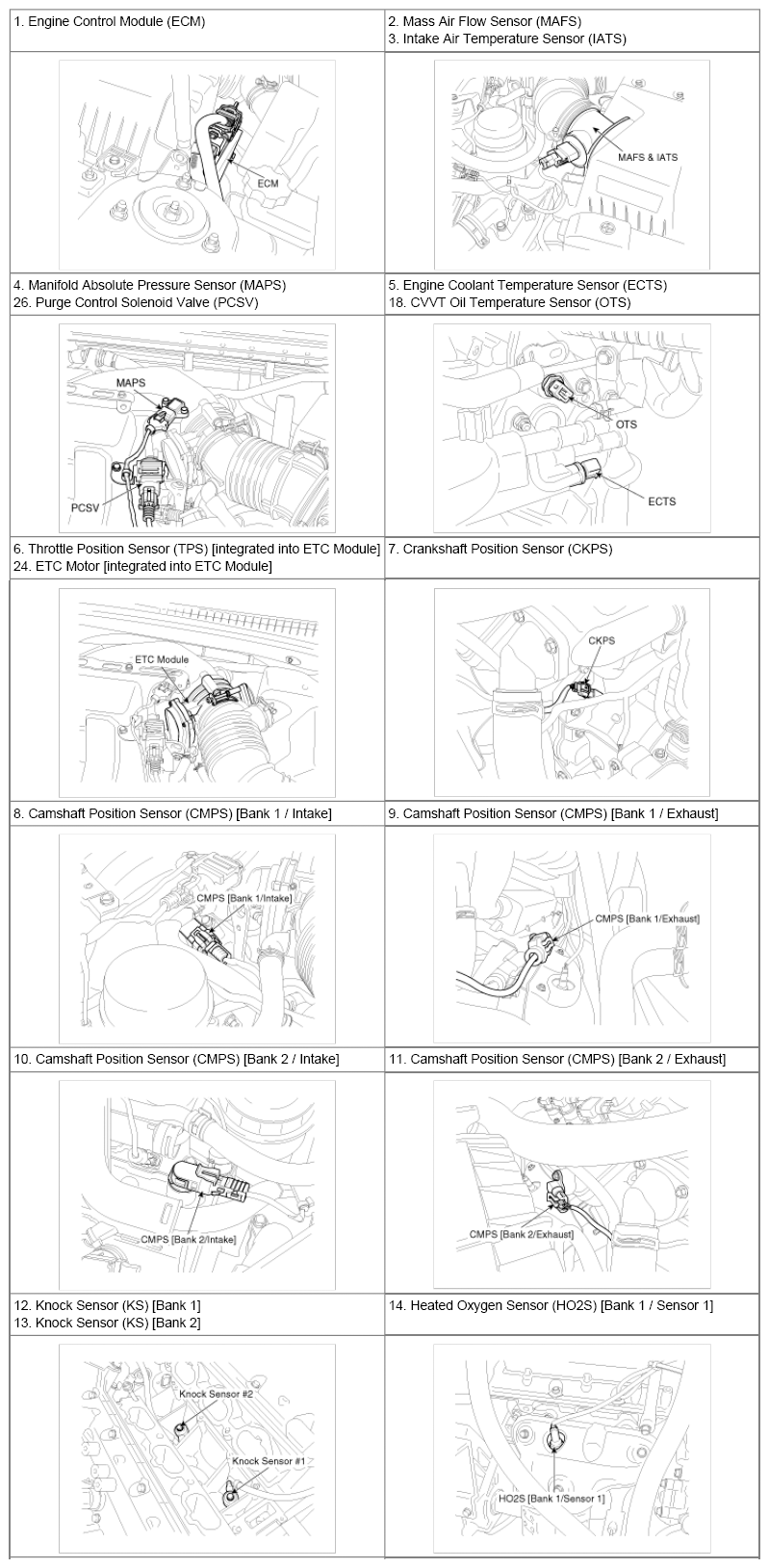

Fig 2: Engine Control System Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

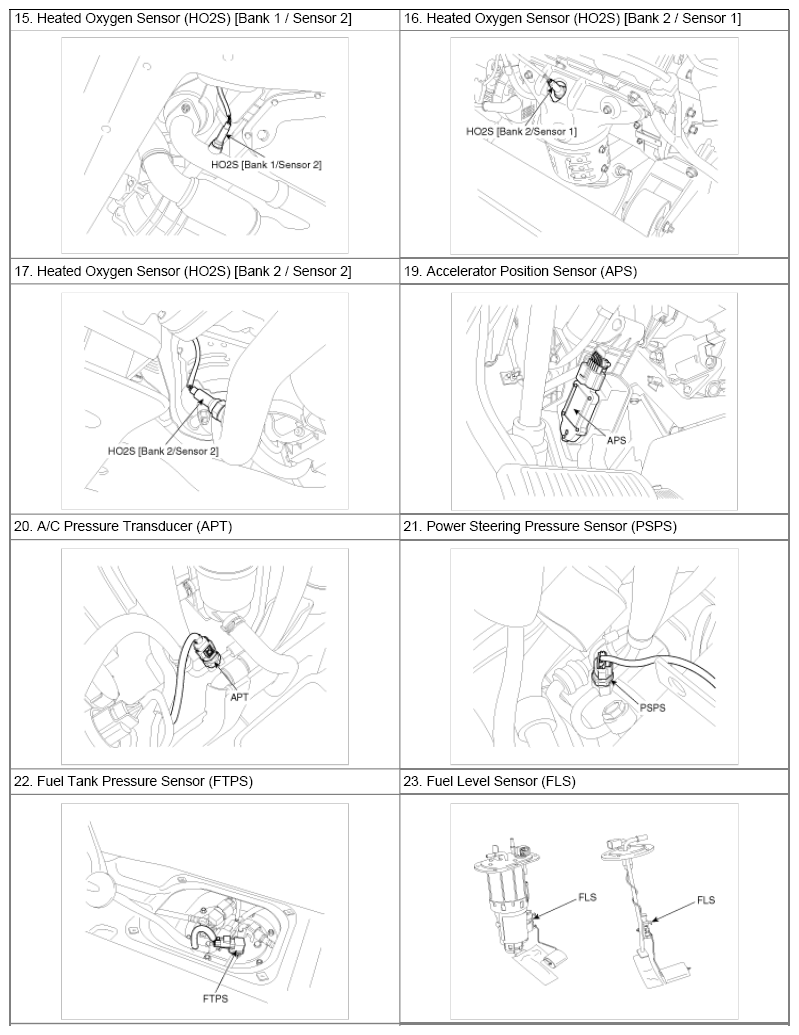

Fig 3: Engine Control System Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

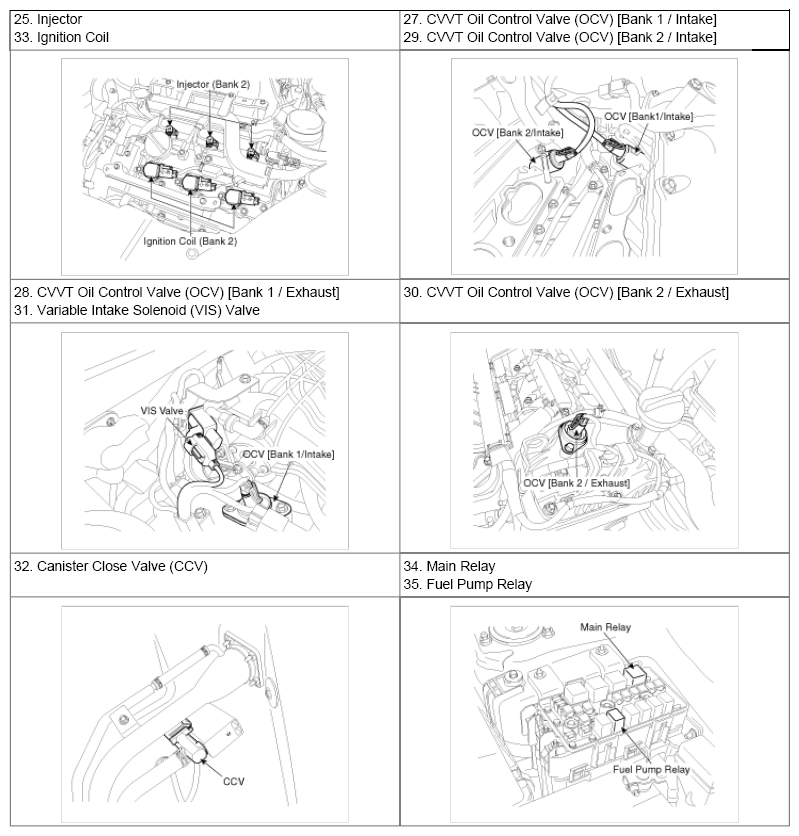

Fig 4: Engine Control System Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
