Wheel Runout

  1. Jack up the vehicle and support it with jack stands.
  2. Measure the wheel runout with a dial indicator as illustrated.
  3. Replace the wheel if the wheel runout exceeds the limit.
    WHEEL RUNOUT SPECIFICATIONS

    Limit Radial Axial
    Runout mm (in) Aluminum 0.3 0.3

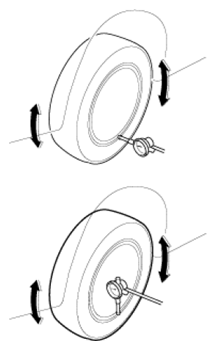

    Fig 1: Measuring Wheel Runout
    G06805320Courtesy of HYUNDAI MOTOR CO.
