Repair Procedures: Removal

CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the head lamp assembly (A).

    (Refer to the "HEAD LAMP

    Fig 1: Identifying Head Lamp Assembly
    G07256447Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front impact sensor mounting bolt (A).

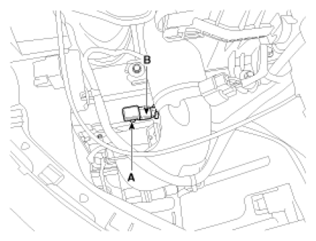

    Fig 2: Identifying Front Impact Sensor Mounting Bolt
    G07256448Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the front impact sensor connector (B).
  5. Remove the front impact sensor.
