BCM (Body Control Module)
›
Body Control Module (BCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

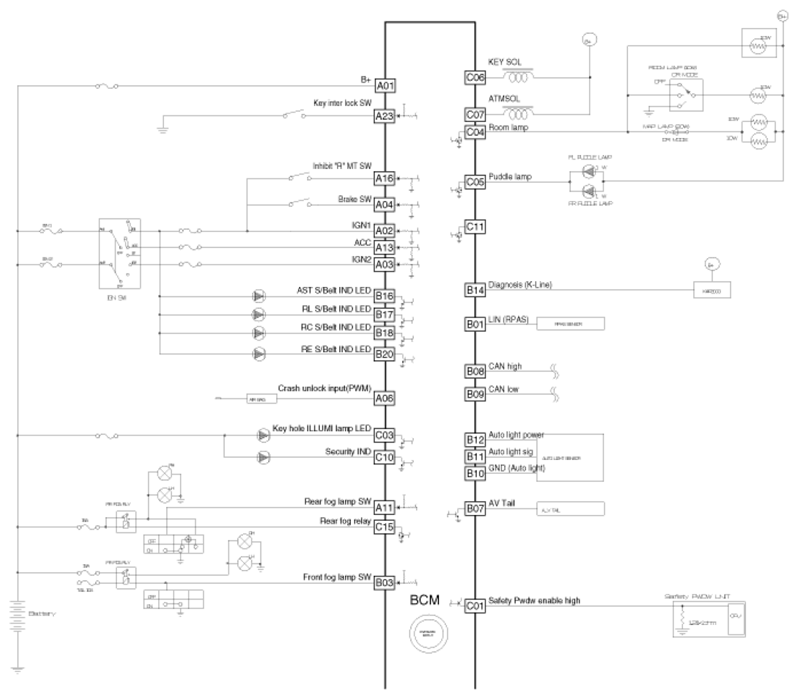

Fig 1: Body Control Module - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

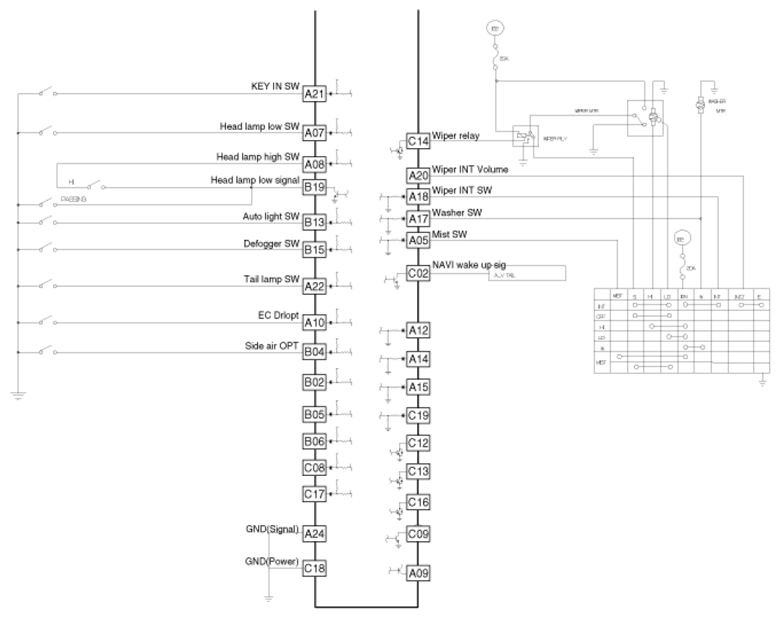

Fig 2: Body Control Module - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
