Home › Hyundai › 2011 › Elantra GLS, Standard › Repair and Diagnosis › Engine Mechanical › Starter › Starting System › Starter › Components and Components Location › Components › [Valeo]

Components and Components Location: Components: [Valeo]

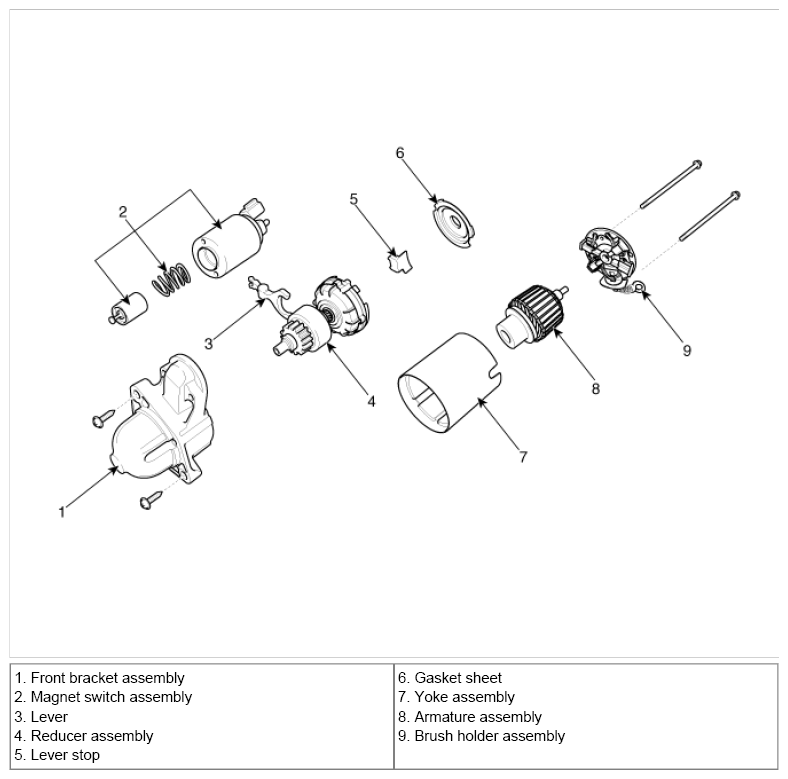

Fig 1: Identifying Starter Components (Valeo)
G07256334Courtesy of HYUNDAI MOTOR CO.
