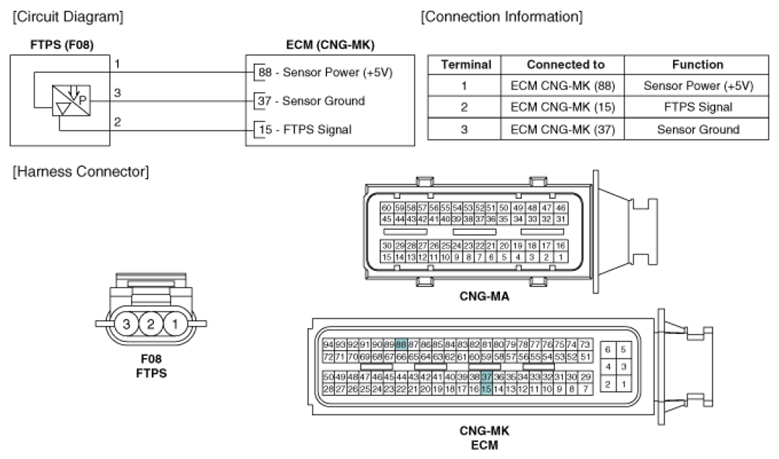

Home › Hyundai › 2011 › Elantra GLS, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System Components › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram › (M/T)
