Circuit Diagram: (A/T)

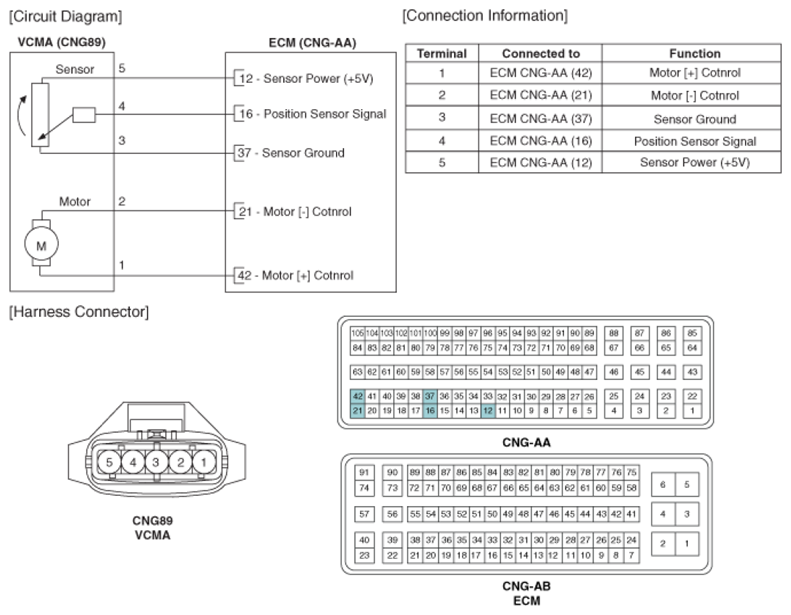

Fig 1: Variable Charge Motion Actuator (A/T) - Circuit Diagram
G07264130Courtesy of HYUNDAI MOTOR CO.
