Circuit Diagram

Fig 1: Input Speed Sensor - Circuit Diagram
G07264288Courtesy of HYUNDAI MOTOR CO.

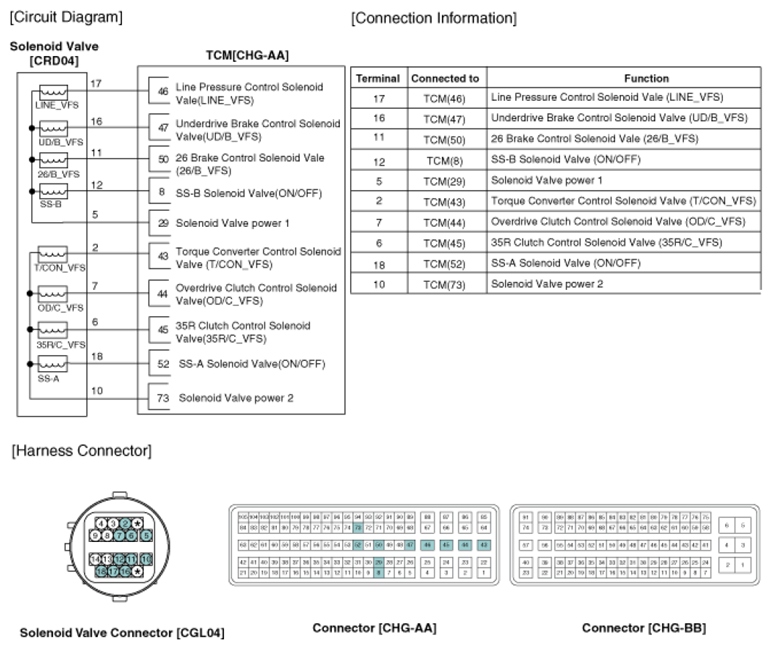

Fig 1: Brake Control Solenoid Valve - Circuit Diagram
G07264310Courtesy of HYUNDAI MOTOR CO.
