Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

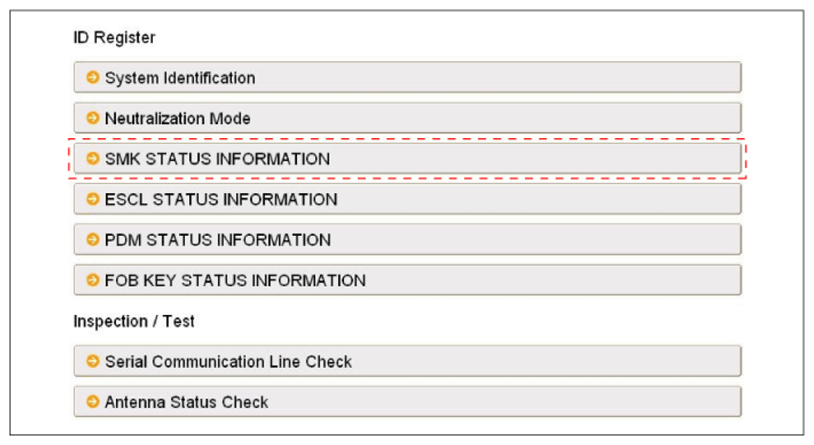

    Fig 1: Selecting Smk Status Info
    G07312634Courtesy of HYUNDAI MOTOR CO.

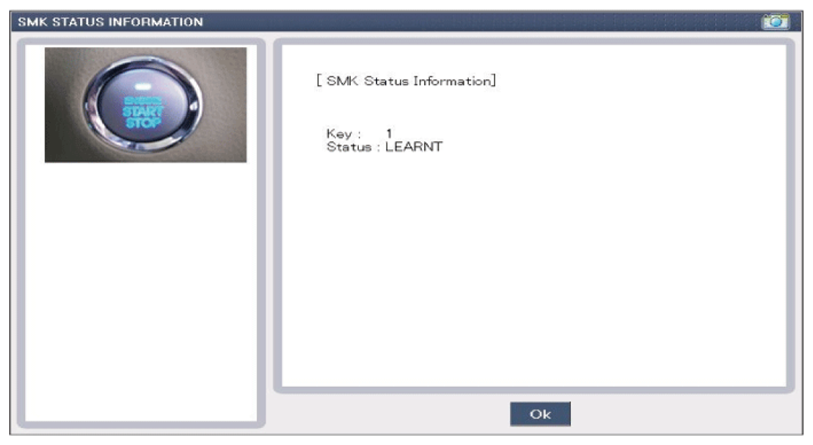

    Fig 2: Display Smk Status Information Screen
    G07312635Courtesy of HYUNDAI MOTOR CO.
