Projected Dimensions

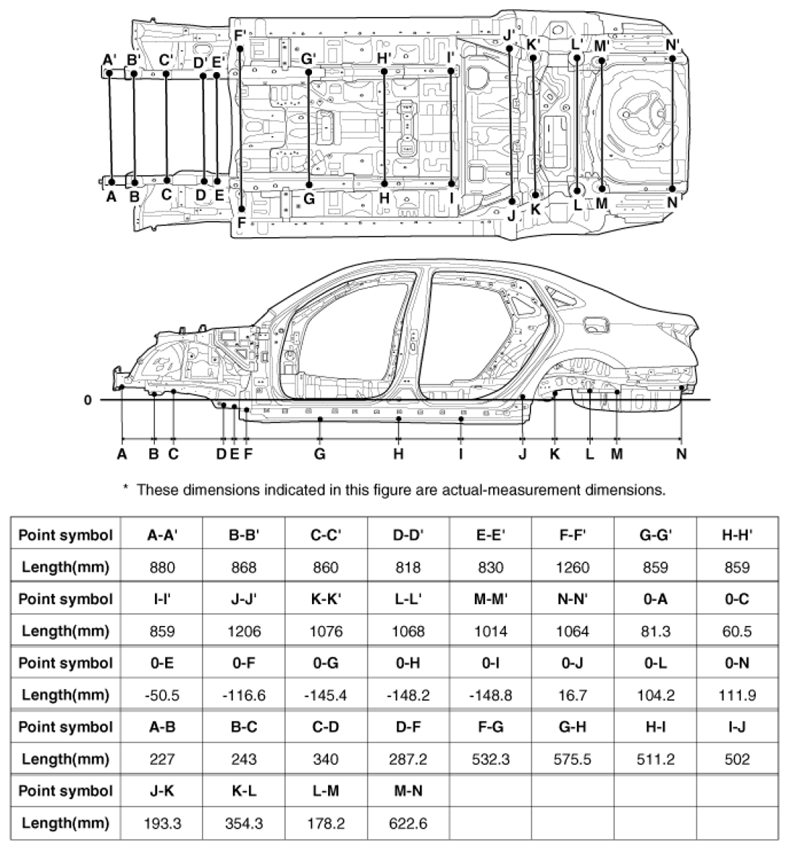

Fig 1: Identifying Under Body Projected Actual-Measurement Dimensions

Courtesy of HYUNDAI MOTOR CO.

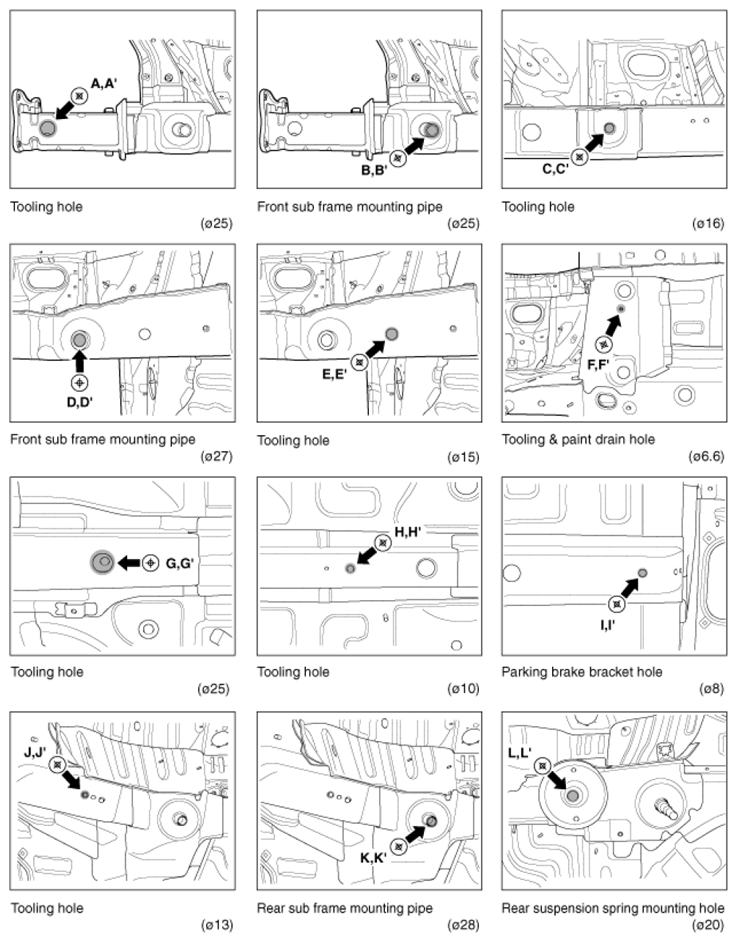

Fig 2: Locating Under Body Projected Actual-Measurement Points (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

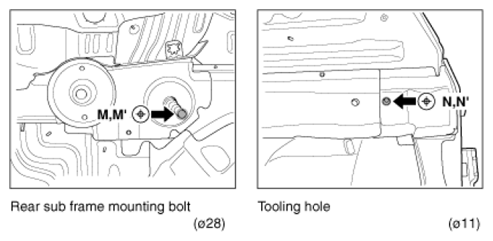

Fig 3: Locating Under Body Projected Actual-Measurement Points (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Actual Measurement Dimensions

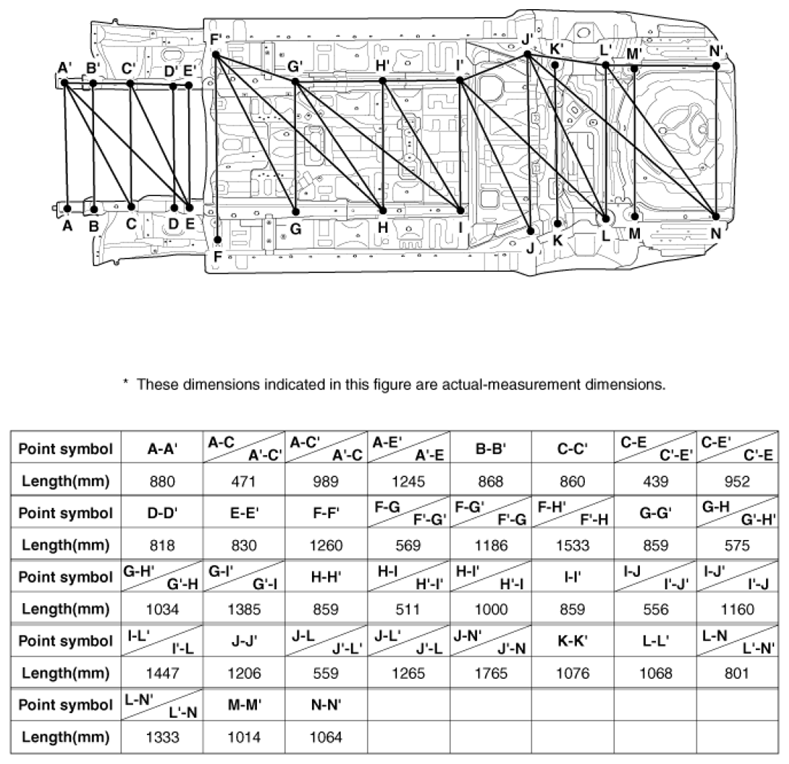

Fig 4: Identifying Actual Measurement Dimensions

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Locating Actual Measurement Dimensions Points (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

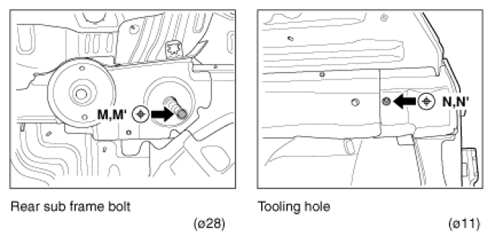

Fig 6: Locating Actual Measurement Dimensions Points (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
