Components
›
Assist Power Window Switch
Assist Power Window Switch

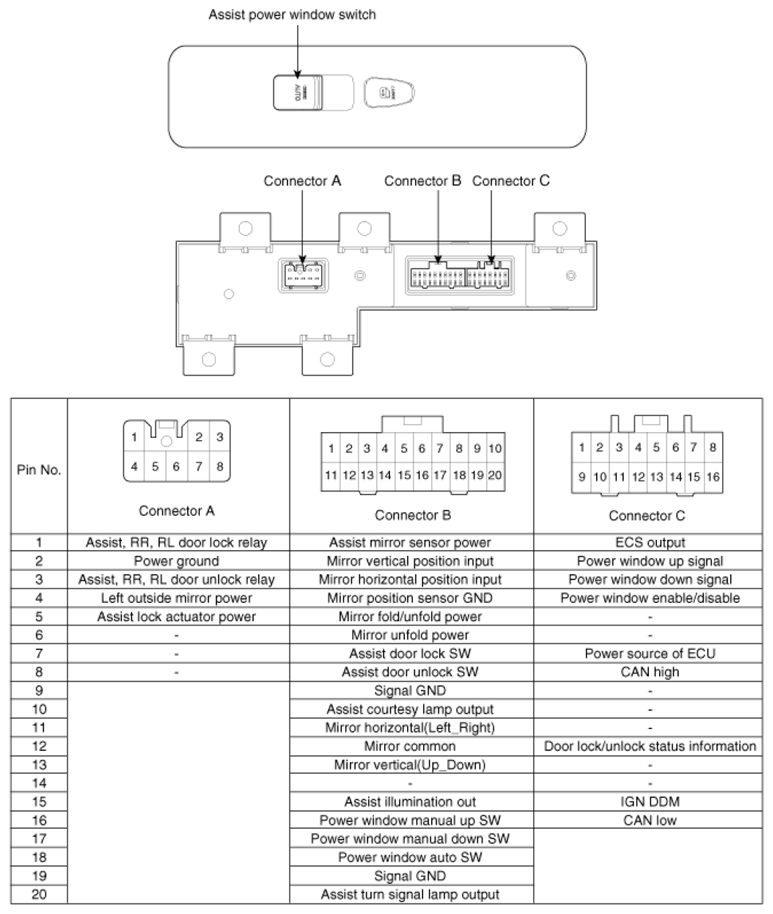

Fig 1: Identifying Assist Power Window Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
