Power Window Switch
›
Components and Components Location
›
Components
›
Rear Power Window Switch
Rear Power Window Switch

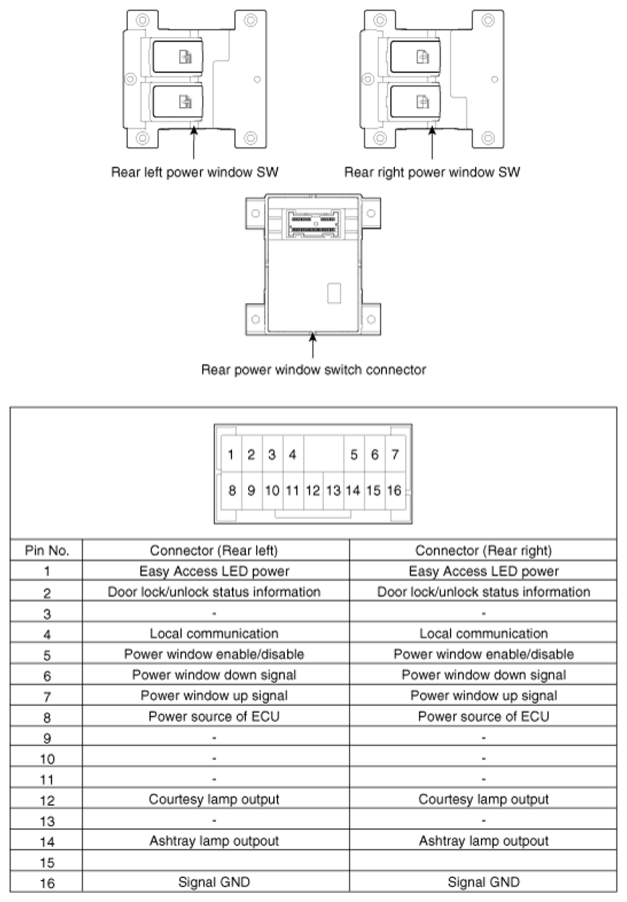

Fig 1: Identifying Rear Power Window Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
