Component Inspection

Specification:  Turned to pressed direction

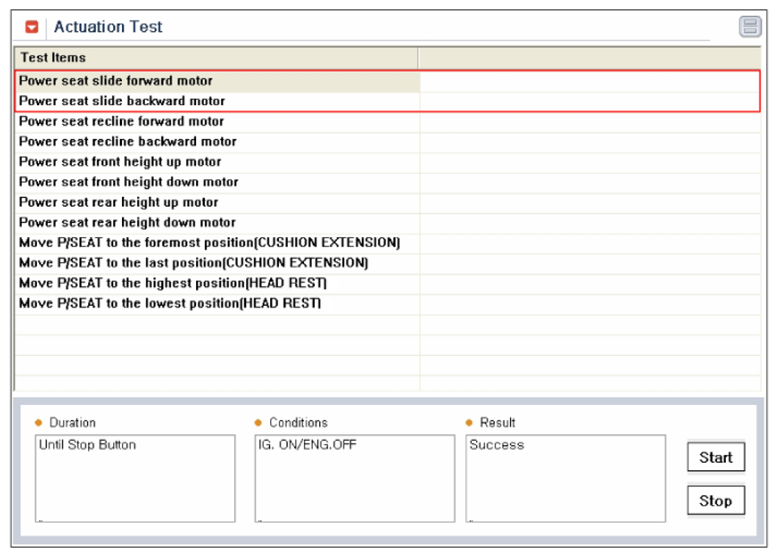

Fig 1: Scantool Display - Seat Slide Motor (Forward, Backward)

Courtesy of HYUNDAI MOTOR CO.

YES

• Go to "W/HARNESS INSPECTION " procedure.

NO

• Go to next procedure.

• Check switch

1. IG "ON" & ENG "OFF".
2. After connect GDS, select "Current Date" menu.
3. Check whether "Slide Switch" is turned to "ON" when the control switch is pressed. (Forward, Backward)

   Specification:  Service data is switched. (ON ↔ OFF)

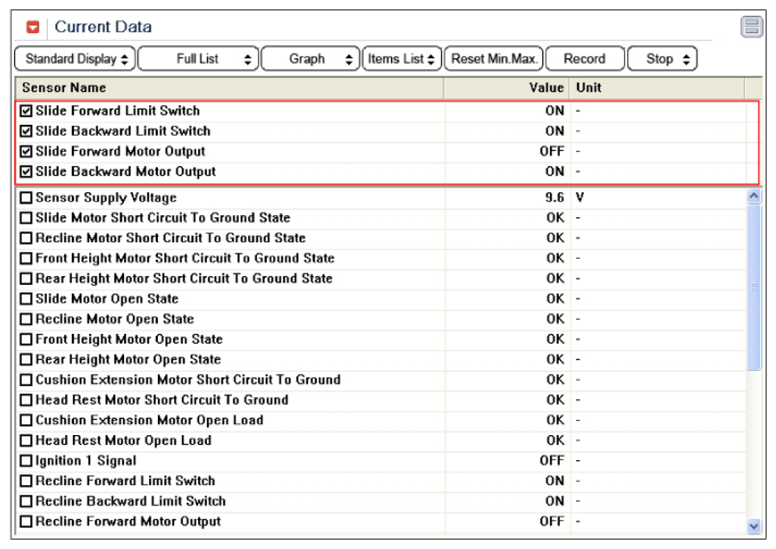

   Fig 2: Scantool Display - Slide Switch (Forward, Backward)

   Courtesy of HYUNDAI MOTOR CO.
4. Is the service data normal?

   YES

   • Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.

   NO

   • Substitute with a known - good component and check for proper operation.
   • If the problem is corrected, replace the component and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
