Service Data Analysis

IG "OFF" and connect GDS.
IG "ON" and select "Current Data" menu.
Check the service data of Shift Lever P Position.
Specification: When the shift lever is positioned at P: ON, at the other range: OFF

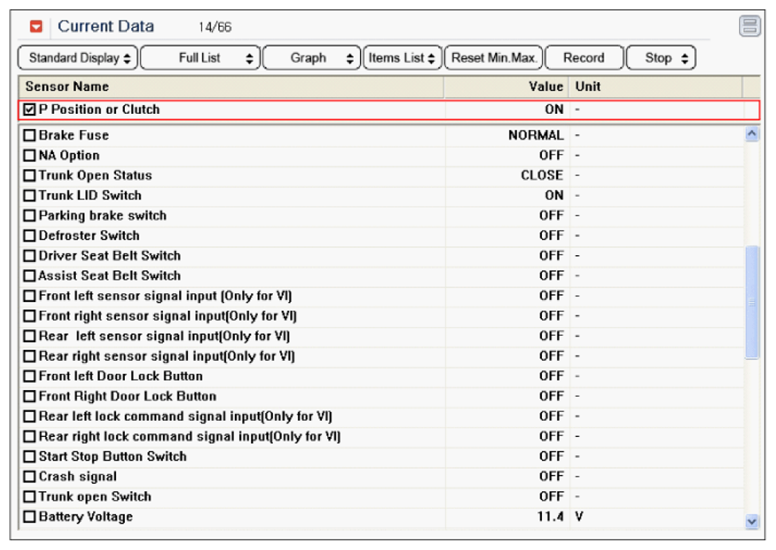

Fig 1: Current Data - P Position Or Clutch
Courtesy of HYUNDAI MOTOR CO.
Is the service data within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check the P Position Switch and the related circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
